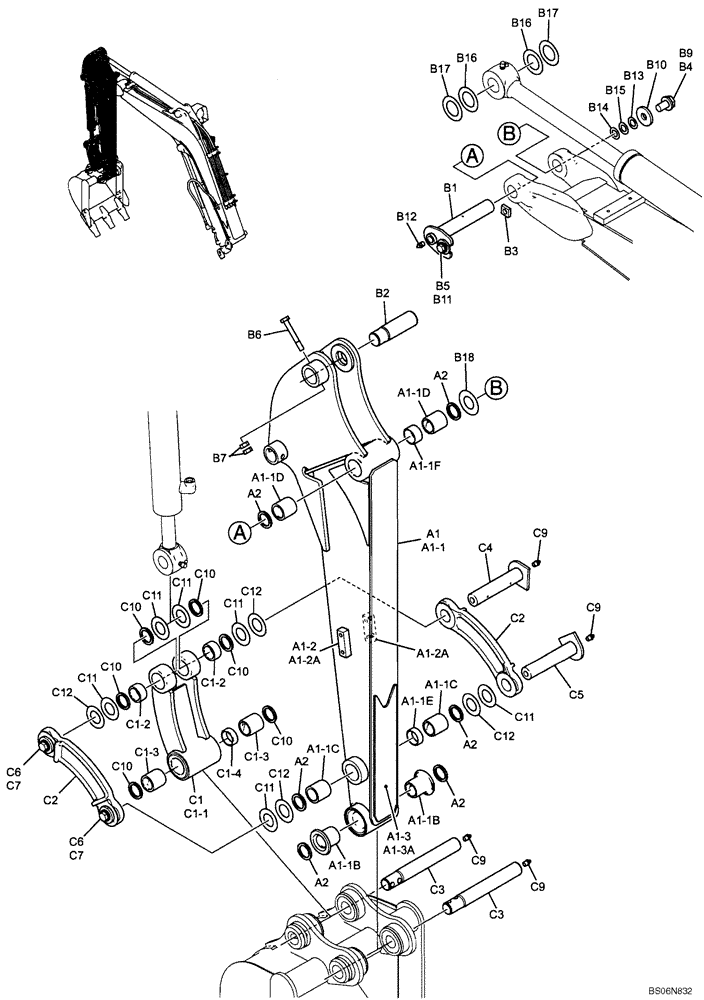

Запчасти Case CX17B (03-006[00]) - ARM ASSY, STANDARD 0.98M (3 FT 2 IN) (PU12B00049F1) (84) - BOOMS, DIPPERS & BUCKETS
![Схема запчастей Case CX17B - (03-006[00]) - ARM ASSY, STANDARD 0.98M (3 FT 2 IN) (PU12B00049F1) (84) - BOOMS, DIPPERS & BUCKETS](https://partsell.ru/storage/images/casece/1339982.png)
№
Артикул
Название
Примечание
Количество
PU12B00049F1
ARM ASSY, STANDARD 0.98M (3 FT 2 IN) (PU12B00049F1)
1шт.
a1
PU12B00050F1
ARM
Arm
1шт.
a1-1
PU12B00039F1
Arm
1шт.
a1-1b
PE12B01038P2
BUSHING,30mm ID x 61mm OD x 45mm L
2шт.
a1-1c
PE12B01075P1
BUSHING,30mm ID x 40mm OD x 40mm L
2шт.
a1-1d
PE12B01074P1
BUSHING
2шт.
a1-1e
PE12B01036D1
COLLAR
1шт.
a1-1f
PE12B01036D2
COLLAR
Collar
1шт.
a1-2
PU12B00041P1
Arm
1шт.
a1-2a
PV12B01227P1
BLOCK
Tapped
2шт.
a1-3
PU12B00051P1
Arm Assy
1шт.
a1-3a
PU12B01163P1
Plate
1шт.
a2
PN54D01001D1
DUST CAP
Seal
6шт.
PU12B00037F1
ARM INSTAL (PU12B00037F1)
1шт.
b1
PU12B01143P1
PIN
Pin
1шт.
b2
PU12B01139P1
PIN
Pin
1шт.
b3
PA12B01030P1
COLLAR
1шт.
b4
ZS18C16030
SCREW,Hex, M16 x 30mm
1шт.
b5
ZM73C10030
BOLT,M10x30mm - Course Thread
Bolt
1шт.
b6
HS18C10075G2
SCREW
1шт.
b7
ZN18C10008
NUT
2шт.
b9
ZW16H16000
WASHER
1шт.
b10
PA12B01066P1
WASHER
1шт.
b11
PA12B01031P1
WASHER
1шт.
b12
ZG91S02000
LUBE NIPPLE,1/8" NPT x 1/8" NPT
1шт.
b13
PB02B01012D1
SHIM,0.5mm Thk
1шт.
b14
PB02B01012D2
SHIM,0.9mm Thk
1шт.
b15
PB02B01012D3
SHIM,1.2mm Thk
1шт.
b16
PR02B01109P1
SHIM,0.5mm Thk
1шт.
b17
PR02B01122D1
SHIM,0.9mm Thk
1шт.
b18
PA12B01077P1
SHIM,0.5mm Thk
1шт.
PU12B00038F1
ARM GROUP (PU12B00038F1)
1шт.
c1
PU12B01134F1
LINK
Link, Bucket
1шт.
c1-1
PU12B01135P1
Link, Bucket
1шт.
c1-2
PU12B01146P1
BUSHING
Bushing
2шт.
c1-3
PE12B01075P1
BUSHING,30mm ID x 40mm OD x 40mm L
2шт.
c1-4
PE12B01036D1
COLLAR
1шт.
c2
PU12B01140P1
LINK
Link
2шт.
c3
PE12B01073P2
PIN
2шт.
c4
PE12B01083P1
COTTER PIN
1шт.
c5
PE12B01085P1
COTTER PIN
1шт.
c6
ZM73C12025
BOLT,M12x25mm - Course Thread
Bolt
2шт.
c7
PE12B01057P1
WASHER
2шт.
c9
ZG91S02000
LUBE NIPPLE,1/8" NPT x 1/8" NPT
4шт.
c10
PN54D01001D1
DUST CAP
Seal
6шт.
c11
PE12B01048D2
SHIM,1.0mm Thk
6шт.
c12
PE12B01087P1
SHIM,0.5mm Thk
4шт.
Выбрано товаров: 47
