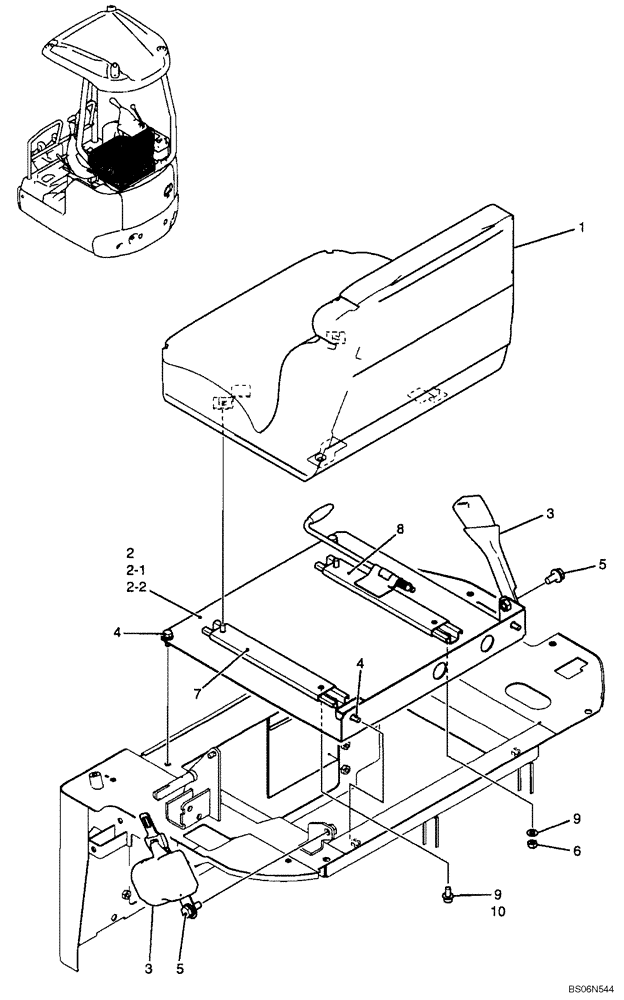

Запчасти Case CX17B (01-037[00]) - SEAT ASSY INSTAL (PU25M00022F1) (84) - BOOMS, DIPPERS & BUCKETS

PU25M00022F1

SEAT ASSY INSTAL (PU25M00022F1)

1шт.

1

PU25M00020P1

SEAT

Seat

1шт.

2

PU25M01040F1

Cover Assy

1шт.

2-1

PU25M01038P1

COVER

Cover

1шт.

2-2

PU25M01039P1

INSULATION

Insulation

1шт.

3

PW25M00015F1

SEAT BELT,48mm W x 1250mm L, Black

SAFETY BELT

1шт.

4

PA03M01093D2

BOLT

1шт.

5

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer)

5шт.

6

ZN18C08007

NUT

4шт.

7

PU25M01034P1

SLIDE GUIDE

Slide Rail

1шт.

8

PU25M01035P1

SLIDE GUIDE

Slide Rail

1шт.

9

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

8шт.

10

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

4шт.
