(05-006[00]) - ALARM ASSEMBLY (PU53E00002F1)

Запчасти Case CX17B (05-006[00]) - ALARM ASSEMBLY (PU53E00002F1) (55) - ELECTRICAL SYSTEMS

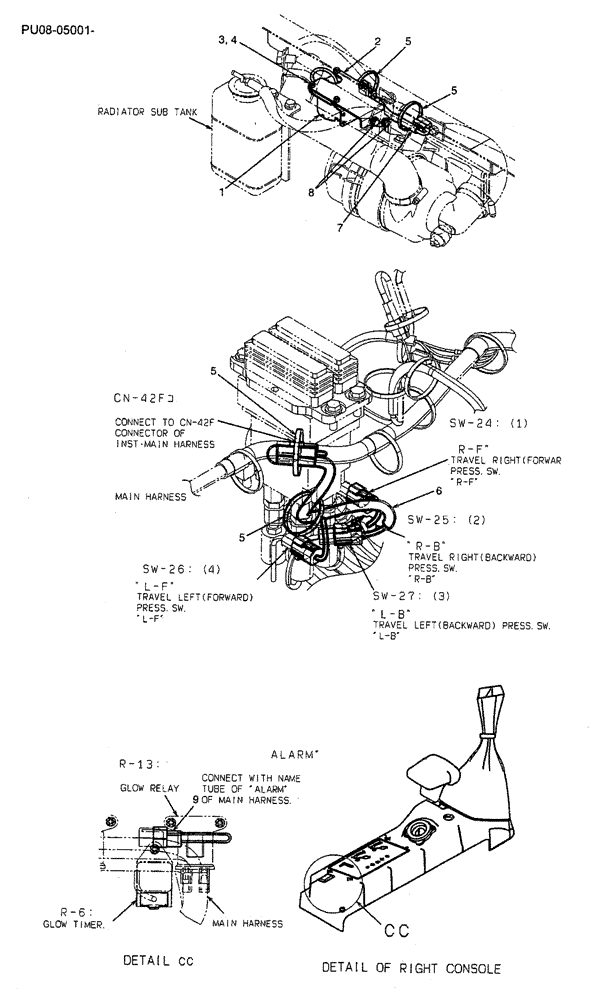

Схема запчастей Case CX17B - (05-006[00]) - ALARM ASSEMBLY (PU53E00002F1) (55) - ELECTRICAL SYSTEMS
6
5
2
4
7
3
9
1
5
8
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Alarm Assembly, PU53E00002F1, Includes: Ref. 1-9

1шт.

1

PW53S00002F1

REVERSE ALARM,DC12V, 0.3 Amp

1шт.

2

PU53E01008P1

BRACKET

1шт.

3

ZM61C05012

BOLT

ZM61C05012

4шт.

4

ZN18C05004

NUT

M05x0.8mm

4шт.

5

PY01P01043D3

CABLE TIE,188mm L

Wire Ties -- 188mm Long

4шт.

6

PW13E01069P1

HARNESS

1шт.

7

PU13E01056P1

HARNESS

1шт.

8

ZM73C06016

BOLT,M6x16mm - Course Thread

M06x1.0x16mm (Incls. Washer)

2шт.

9

PW14E01018P1

WIRE HARNESS

Harness

1шт.
