(03-005[00]) - LAMP INSTAL & HARNESS (BOOM) (PU80S00012F1)

Запчасти Case CX17B (03-005[00]) - LAMP INSTAL & HARNESS (BOOM) (PU80S00012F1) (55) - ELECTRICAL SYSTEMS

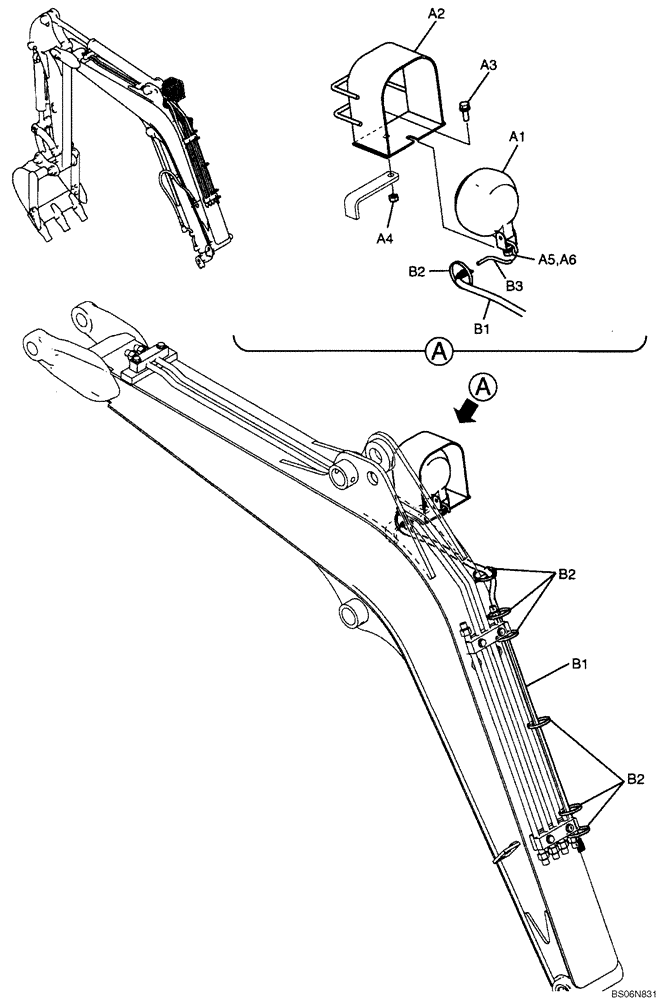

Схема запчастей Case CX17B - (03-005[00]) - LAMP INSTAL & HARNESS (BOOM) (PU80S00012F1) (55) - ELECTRICAL SYSTEMS
a3
b3
a4
a6
b2
b2
b1
a5
a1
a2
b2
b1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU80S00012F1

HEADLAMP

LIGHT ASSY (PU80S00012F1)

1шт.

a1

PA80S00003F1

LIGHT ASSY.

See Figure 01-036

1шт.

a2

PE80S01002P1

COVER ASSY

1шт.

a3

ZM22C08025

BOLT

1шт.

a4

ZN18C08007

NUT

1шт.

a5

ZW26X08000

LOCK WASHER

Lock

1шт.

a6

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

1шт.

PU15E00013F1

HARNESS

HARNESS ASSY, BOOM (PU15E00013F1)

1шт.

b1

PU15E01004P1

WIRE HARNESS

Harness

1шт.

b2

PY01P01043D3

CABLE TIE,188mm L

7шт.

b3

PU06C01020D9

TUBE

1шт.

Выбрано товаров: 11
