(01-041[00]) - BATTERY INSTAL (PU72E00012F1)

Запчасти Case CX17B (01-041[00]) - BATTERY INSTAL (PU72E00012F1) (55) - ELECTRICAL SYSTEMS

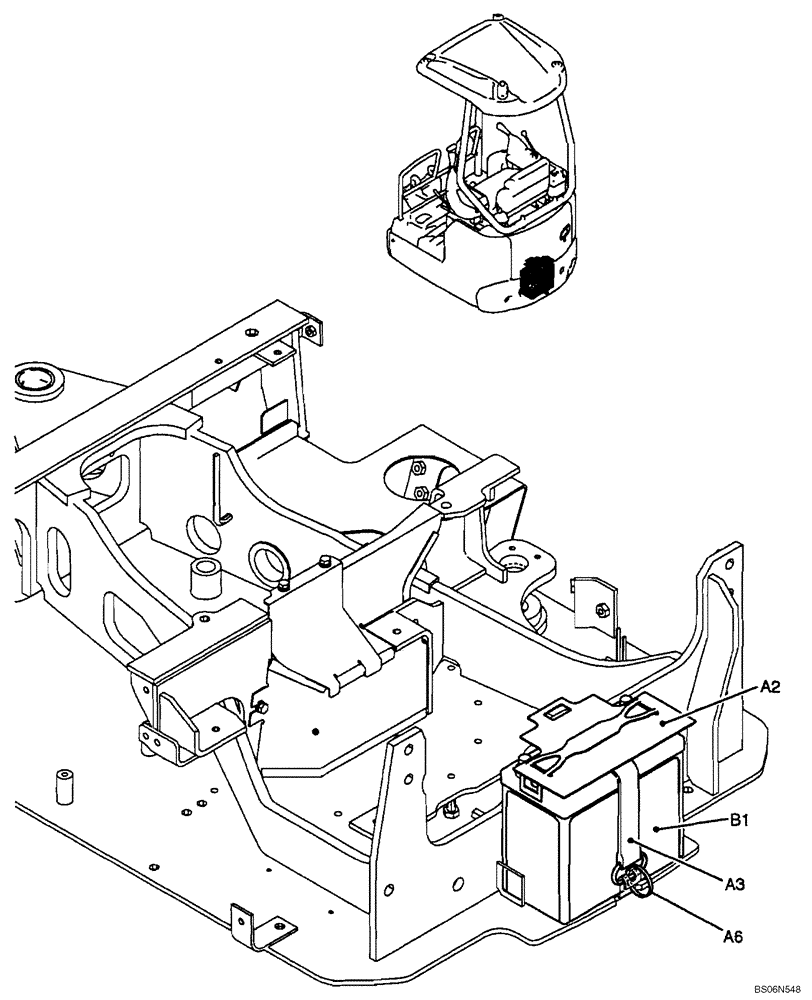

Схема запчастей Case CX17B - (01-041[00]) - BATTERY INSTAL (PU72E00012F1) (55) - ELECTRICAL SYSTEMS
a3
a6
a2
b1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU72E00013F1

BATTERY ASSY (PU72E00013F1)

1шт.

PU72E00012F1

BATTERY INSTAL (PU72E00012F1)

1шт.

a2

PU72E01023P1

RUBBER

Rubber

1шт.

a3

PE72E01006P1

BRAKE BAND

BAND Retainer

1шт.

a6

PY01P01043D3

CABLE TIE,188mm L

1шт.

b1

PU72S00014P1

Battery

1шт.

B5150W

WET BATTERY

Ship Direct Battery - For US Applications

1шт.

CC5150W

WET BATTERY

Ship Direct Battery - For Canadian Applications

1шт.

Выбрано товаров: 8
