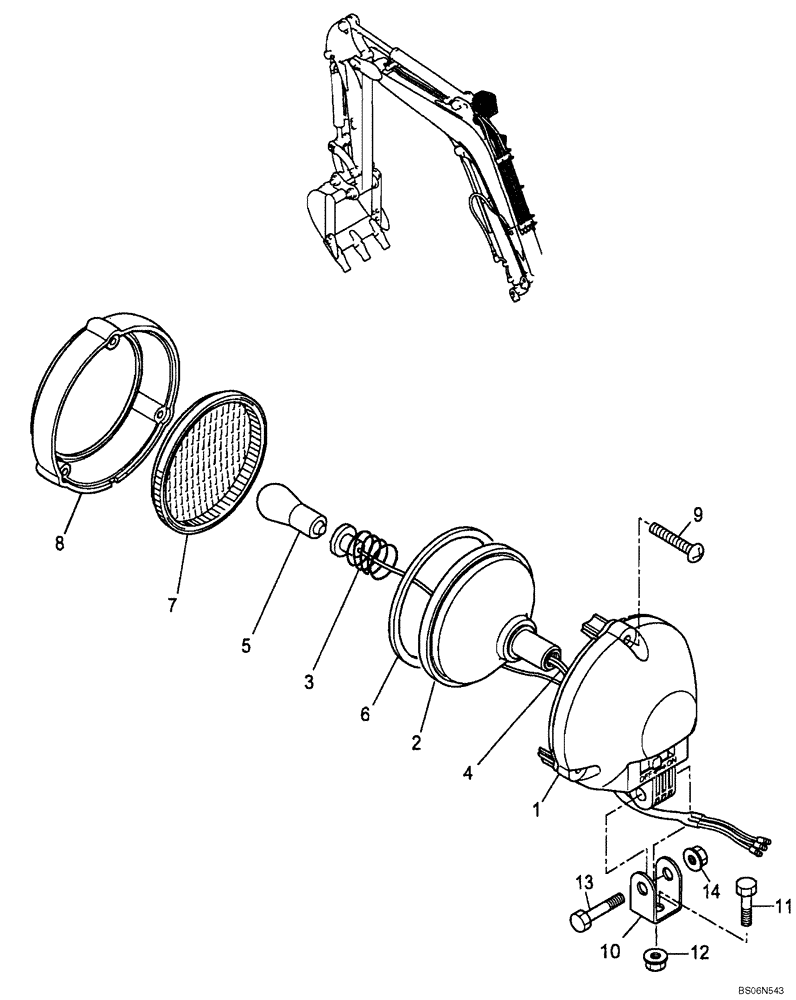

Запчасти Case CX17B (01-036[00]) - WORK LAMP ASSY (PA80S00003F1) (55) - ELECTRICAL SYSTEMS

PA80S00003F1

LIGHT ASSY.

1шт.

1

PA80S00003S001

HOUSING

Housing

1шт.

2

PA80S00003S002

Reflector

1шт.

3

PA80S00003S003

SPRING

Spring

1шт.

4

PA80S00003S004

Harness

1шт.

5

PA80S00003S005

BULB

1шт.

6

PA80S00003S006

Gasket

1шт.

7

PA80S00003S007

BULB

Lens

1шт.

8

PA80S00003S008

Rim, Lens Retainer

1шт.

9

PA80S00003S009

Screw, Tapping

3шт.

10

PA80S00003S010

Bracket

1шт.

11

PA80S00003S011

Screw

1шт.

12

PA80S00003S012

NUT

Nut

1шт.

13

PA80S00003S013

Screw

1шт.

14

PA80S00003S014

NUT

Nut

1шт.
