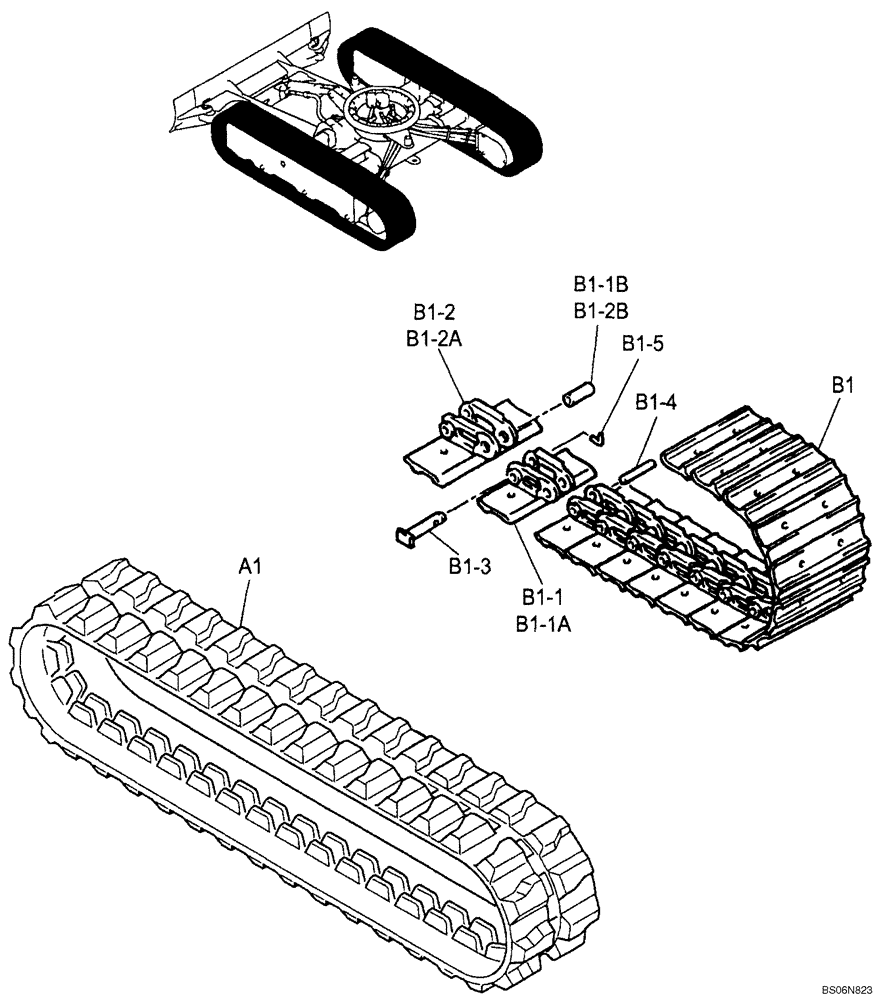

Запчасти Case CX17B (02-008[00]) - SHOE ASSY, TRACK / BELT (PE61D00002F1, PE60D00003F1) (48) - TRACKS & TRACK SUSPENSION
![Схема запчастей Case CX17B - (02-008[00]) - SHOE ASSY, TRACK / BELT (PE61D00002F1, PE60D00003F1) (48) - TRACKS & TRACK SUSPENSION](https://partsell.ru/storage/images/casece/215421.png)
b1
b1-3
b1-2
b1-1b
b1-4
b1-5
b1-1a
a1
b1-1
b1-2b
b1-2a
№
Артикул
Название
Примечание
Количество
PE61D00002F1
RUBBER (PE61D00002F1)
1шт.
a1
PE61D00001P1
RUBBER TRACK
Crawler Belt
2шт.
PE60D00003F1
SHOE ASSY (PE60D00003F1)
1шт.
b1
PE60D00004F1
TRACK SHOE
Shoe Assy
2шт.
b1-1
PE60D00006F1
SHOE
Master
1шт.
b1-1a
PE60D00008F1
SHOE
Shoe, Master
1шт.
b1-1b
PN60D01011P1
BUSHING
1шт.
b1-2
PE60D00007F1
SHOE
Shoe, Track
35шт.
b1-2a
PE60D00009F1
SHOE
Shoe, Track
1шт.
b1-2b
PN60D01011P1
BUSHING
1шт.
b1-3
PN60D01013P1
PIN
Master
1шт.
b1-4
PN60D01012P1
PIN
Track
35шт.
b1-5
PN60D01014P1
PIN
1шт.
Выбрано товаров: 13
