(02-003[00]) - SLEWING RING ASSEMBLY (PF40F00002F1)

Запчасти Case CX17B (02-003[00]) - SLEWING RING ASSEMBLY (PF40F00002F1) (48) - TRACKS & TRACK SUSPENSION

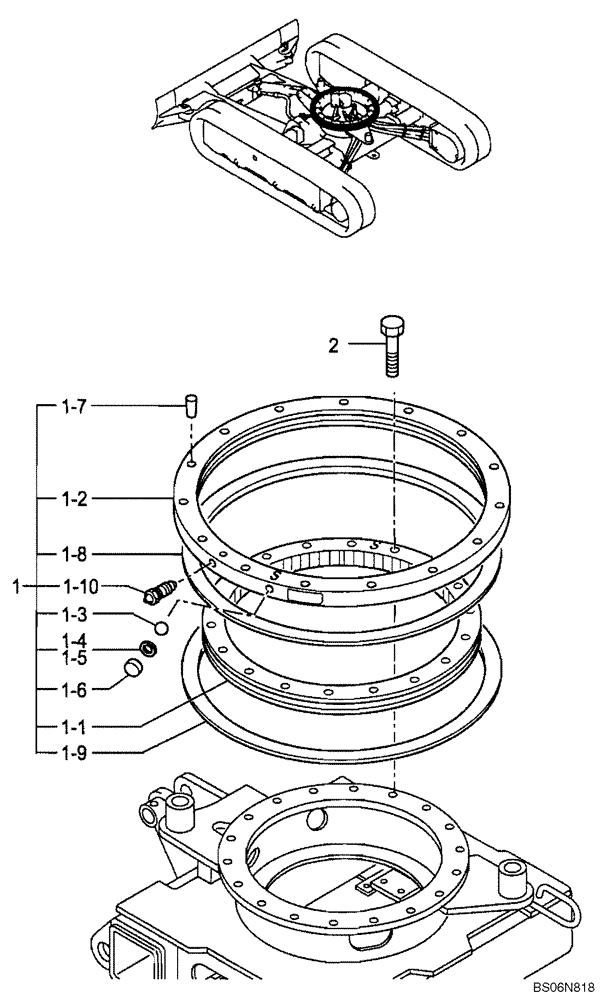

Схема запчастей Case CX17B - (02-003[00]) - SLEWING RING ASSEMBLY (PF40F00002F1) (48) - TRACKS & TRACK SUSPENSION
1-1
1
1-7
1-8
2
1-3
1-9
1-2
1-10
1-4
1-5
1-6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PF40F00002F1

SLEWING RING ASSY (PF40F00002F1)

1шт.

1

PF40F00001F1

RING GEAR,82T

Slewing Ring

1шт.

1-1

PF40F00001S001

Inner Race

1шт.

1-2

PF40F00001S002

Outer Race

1шт.

1-3

PA40F00003S003

Steel Balls

68шт.

1-4

PA40F00003S004

SPACER

65шт.

1-5

PA40F00003S005

SPACER

3шт.

1-6

PA40F00003S006

Plug

1шт.

1-7

PA40F00003S007

Pin, Tapered

1шт.

1-8

PA40F00003S008

SEAL

A

1шт.

1-9

PA40F00003S009

SEAL

B

1шт.

1-10

PV50M01019P1

LUBE NIPPLE

1шт.

2

ZS18C12045

SCREW,Hex, M12 x 45mm

M12 x 45

18шт.
