(05-001[00]) - COUNTERWEIGHT INSTAL (PU60C00023F1)

Запчасти Case CX17B (05-001[00]) - COUNTERWEIGHT INSTAL (PU60C00023F1) (39) - FRAMES AND BALLASTING

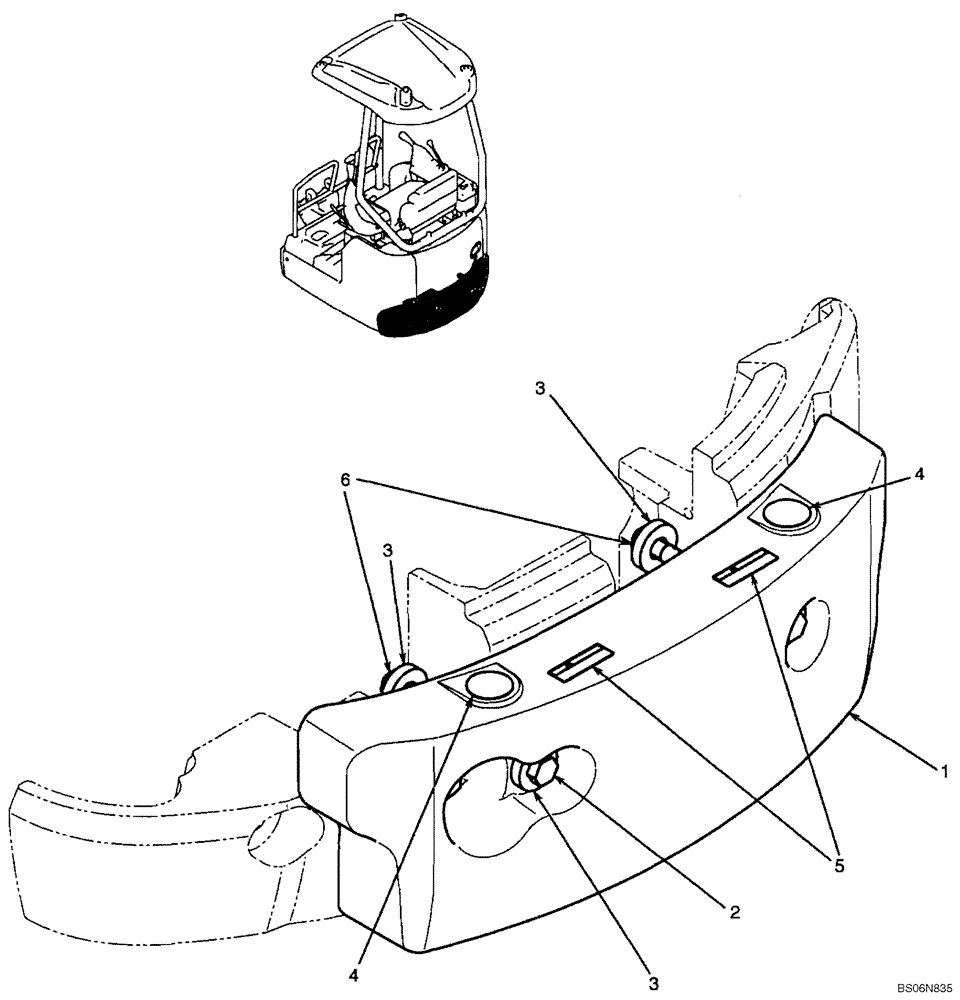

Схема запчастей Case CX17B - (05-001[00]) - COUNTERWEIGHT INSTAL (PU60C00023F1) (39) - FRAMES AND BALLASTING
5
3
1
3
4
4
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PU60C00023F1

COUNTERWEIGHT

COUNTERWEIGHT INSTAL (PU60C00023F1)

1шт.

1

PU60C00022P1

COUNTERWEIGHT

Counterweight

1шт.

2

HS18C16180G2

SCREW

2шт.

3

PH60C01001P1

WASHER

4шт.

4

LE60C01028P1

PLATE

2шт.

5

LP20T01056P1

LABEL

2шт.

6

ZN18C16013

NUT

2шт.
