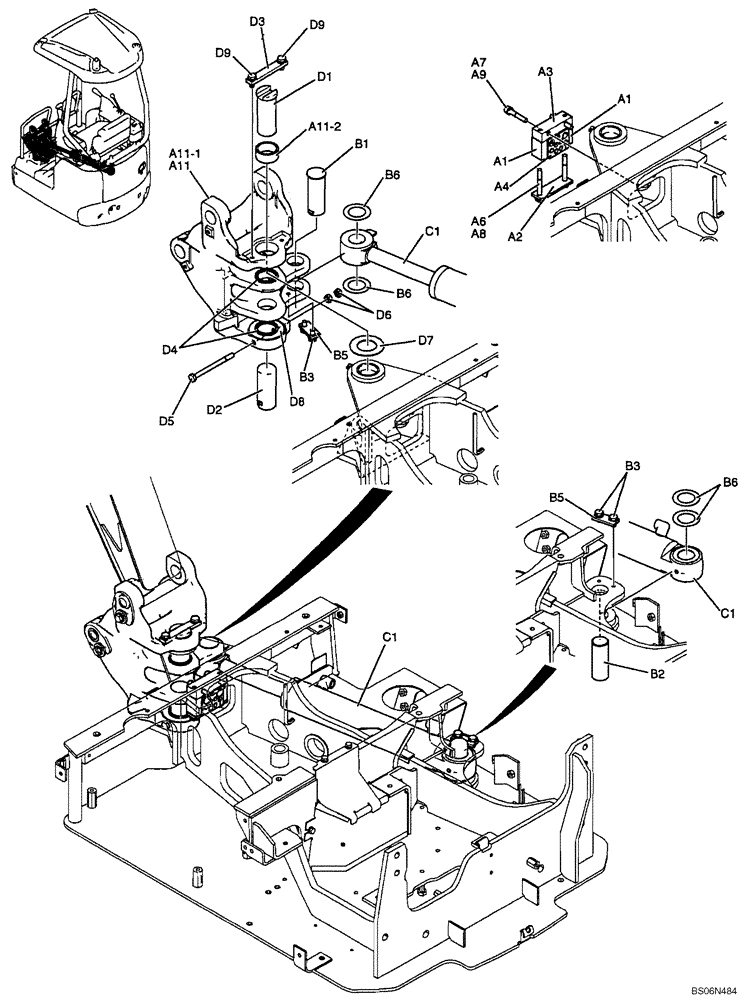

Запчасти Case CX17B (01-002[00]) - BRACKET GROUP, SWING (PU02B00066F1, 76F1, 69F1, 65F1) (39) - FRAMES AND BALLASTING

PU02B00066F1

BRACKET

BRACKET GROUP, SWING (PU02B00066F1)

1шт.

a1

PU02B01201P1

PLATE

Plate

2шт.

a2

PU02B01202P1

PLATE

Plate

1шт.

a3

PU02B01203P1

PLATE

Plate

1шт.

a4

PU02B01216P1

RUBBER SLEEVE

Rubber

1шт.

a6

ZS18C10080

SCREW,Hex, M10 x 80mm

2шт.

a7

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

2шт.

a8

ZW16H10000

WASHER

2шт.

a9

ZW26X10000

LOCK WASHER

2шт.

a11

PU02B00075F1

BRACKET

Bracket Assy, Swing

1шт.

a11-1

PU02B00062P1

Bracket, Swing

1шт.

a11-2

PU02B01208P1

BUSHING

Bushing

1шт.

PU02B00076F1

CYLINDER

CYLINDER, INSTAL (PU02B00076F1)

1шт.

PU02B00069F1

CYLINDER

CYLINDER, INSTAL (PU02B00069F1)

1шт.

b1

PE02B01012P2

PIN

Pin

1шт.

b2

PU02B01173P1

PIN

Pin

1шт.

b3

ZM73C10020

BOLT,M10x20mm - Course Thread

Bolt

4шт.

b5

PA02B01016P1

PLATE

2шт.

b6

PR02B01123D1

SHIM,0.9mm Thk

4шт.

c1

PU01V00028F1

CYLINDER

Swing Cylinder; See Figure 08-026

1шт.

PU02B00065F1

BRACKET

BRACKET INSTAL, SWING (PU02B00065F1)

1шт.

d1

PU02B01166P1

PIN

Pin

1шт.

d2

PF02B01006P1

STOP

Pin

1шт.

d3

PU02B01167P1

PLATE

Plate

1шт.

d4

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

2шт.

d5

HS18C10130G1

BOLT

1шт.

d6

ZN18C10008

NUT

2шт.

d7

PF02B01008P1

WASHER

Washer

1шт.

d8

PW02B01239P1

SHIM,0.5mm Thk

1шт.

d9

ZM73C10025

BOLT,M10x25mm - Course Thread

M10x1.50x25mm (Incls. Washer)

2шт.
