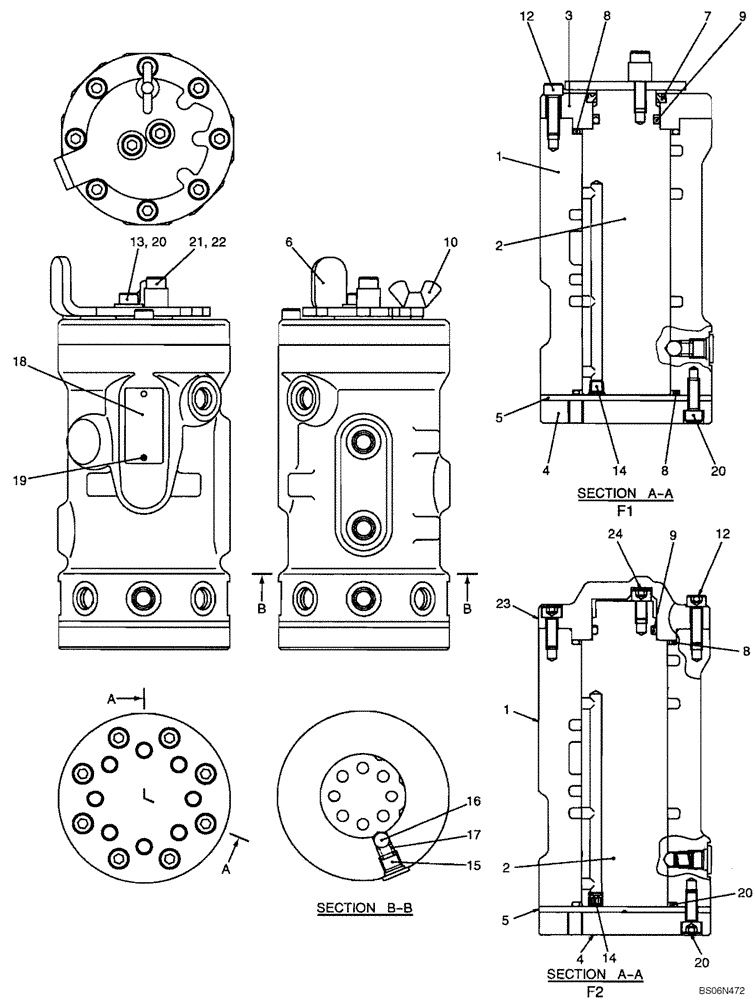

Запчасти Case CX17B (08-032[00]) - VALVE ASSY, SELECTOR (PX30V00060F1, F2) (35) - HYDRAULIC SYSTEMS

PX30V00060F1

CONTROL VALVE

VALVE ASSY, SELECTOR (PX30V00060F1, F2)

1шт.

PX30V00060F2

CONTROL VALVE

VALVE ASSY, SELECTOR (PX30V00060F1, F2)

1шт.

1

PX30V01037P1

HOUSING

1шт.

2

PX30V01036P1

SPOOL

1шт.

3

PX30V01034P1

COVER

(F1 Only)

1шт.

4

PX30V01018P1

COVER

1шт.

5

PX30V01022P1

SPACER

1шт.

6

PX30V01035P1

LEVER

(F1 Only)

1шт.

7

YN30V01012P1

SEAL

(F1 Only)

1шт.

8

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

2шт.

9

ZD11P02800

O-RING

1шт.

10

PX30V01020P1

BOLT

(F1 Only)

1шт.

12

ZS23C06020

SCREW,Hex Socket Head, M6 x 20mm

2шт.

13

ZW16P06000

WASHER

(F1 Only)

1шт.

14

PX30V01029P1

PLUG

5шт.

15

YN30V01027P1

PLUG

1шт.

16

YN30V01015P1

BALL

1шт.

17

YN30V01028P1

SPRING

1шт.

18

YN22T00264P1

Name Plate

1шт.

19

2420Z1036D3

CLEVIS

2шт.

20

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

(F1 Only)

15шт.

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

(F2 Only)

14шт.

21

PX30V01032P1

SPACER

(F1 Only)

1шт.

22

ZS28C06025

SCREW,Hex Socket Head, M6 x 25mm

(F1 Only)

1шт.

23

PX30V01038P1

COVER

(F2 Only)

1шт.

24

ZS23C06010

SCREW,Hex Socket Head, M6 x 10mm

(F2 Only)

1шт.

k

PX30V00046R100

REPAIR KIT

REPAIR KIT; Includes 8x1, 9x1, 23x1, 24x1 (F1 Only)

1шт.

k

PX30V00060R200

REPAIR KIT

REPAIR KIT; Includes 3x1, 6x1, 7x1, 8x1, 9x1, 10x1, 13x1, 20x1, 21x1, 22x1 (F2 Only)

1шт.
