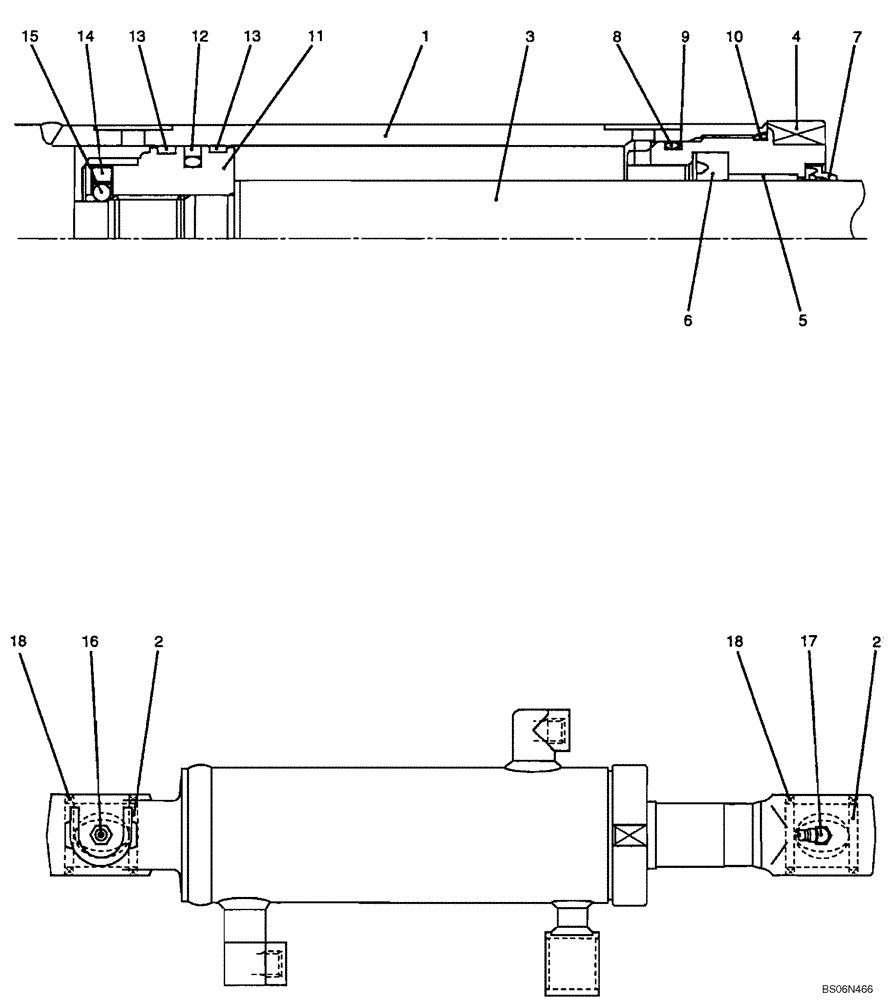

Запчасти Case CX17B (08-025[00]) - CYLINDER ASSY, DOZER (PU01V00029F1) (35) - HYDRAULIC SYSTEMS

PU01V00029F1

CYLINDER

CYLINDER ASSY, DOZER (PU01V00029F1)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PN01V00003S002

BUSHING

Pin, Bushing

2шт.

3

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

4

PV01V00045S005

CYLINDER HEAD

1шт.

5

PV01V00045S019

BUSHING

Bushing

1шт.

6

PW01V00012S005

RING,37mm ID x 55mm OD x 11mm Thk

U-Ring

1шт.

7

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

Ring

1шт.

8

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

O-Ring

1шт.

9

PV01V00045S010

BACK-UP RING

1шт.

10

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

11

PV01V00045S012

PISTON

1шт.

12

2438U988S16

SEAL

Ring

1шт.

13

PV01V00063S014

RING

Ring, Slide

2шт.

14

2438U988S18

SET SCREW

1шт.

15

2438U988S19

BALL

1шт.

16

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

17

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

18

PN54D01001D1

DUST CAP

Seal, Dust

4шт.

k

PU01V00029R100

TUBE

REPAIR KIT; Includes 1x1, 2x1, 18x2

1шт.

k

PU01V00029R200

ROD

REPAIR KIT; Includes 2x1, 3x1, 18x2

1шт.

k

PV01V00045R300

REPAIR KIT

Includes 6x1, 7x1, 8x1, 9x1, 10x1, 12x1, 13x2

1шт.
