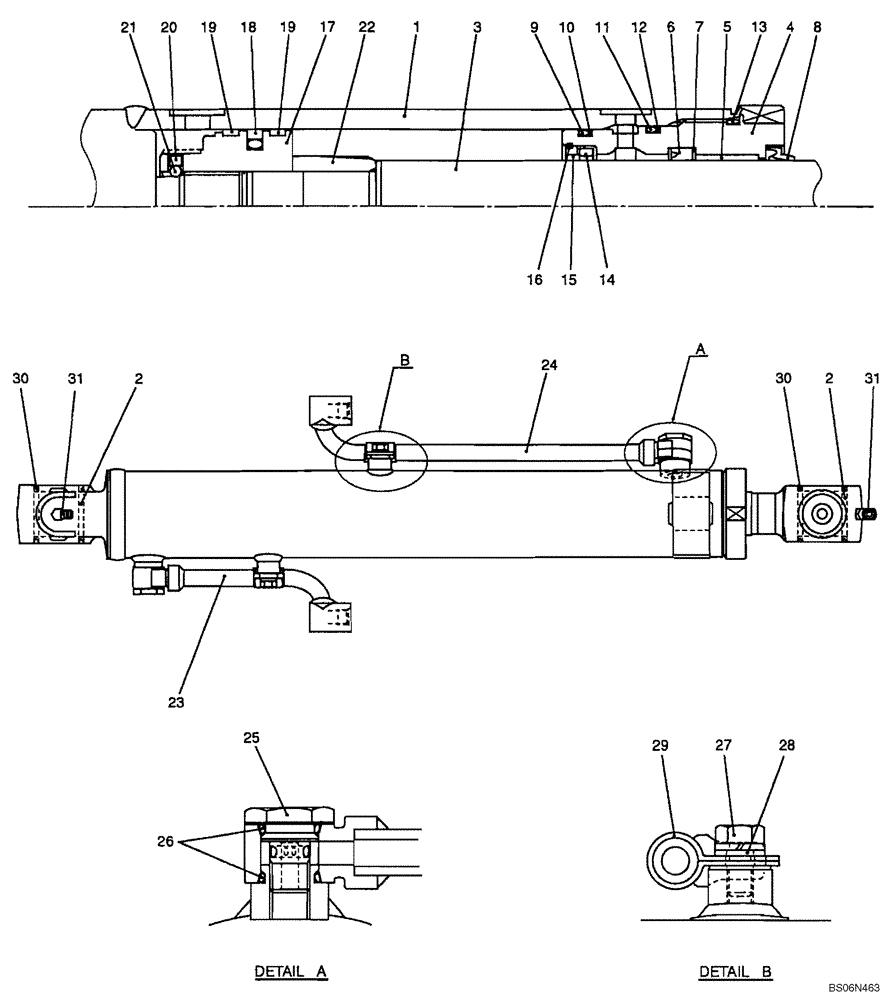

Запчасти Case CX17B (08-022[00]) - CYLINDER ASSY, BOOM (CANOPY) (PU01V00024F1) (35) - HYDRAULIC SYSTEMS

PU01V00024F1

CYLINDER

CYLINDER ASSY, BOOM (CANOPY) (PU01V00024F1)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

PV12B01185D3

BUSHING

PIN

2шт.

3

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

4

PU01V00024S004

CYLINDER

Cylinder Head

1шт.

5

PV01V00045S019

BUSHING

Bushing

1шт.

6

PM01V00008S005

GASKET

U-Ring

1шт.

7

PM01V00050S012

BACK-UP RING

Ring, Backup

1шт.

8

PV01V00023S006

WIPER,33mm ID x 47mm OD x 8mm Thk

Ring

1шт.

9

ZD126G05000

O-Ring

1шт.

10

PV01V00023S008

RING

Ring, Backup

1шт.

11

ZD12G05500

O-RING,3.1mm Thk x 54.4mm ID, 90 Duro

O-Ring

1шт.

12

PV01V00045S010

BACK-UP RING

1шт.

13

ZD12G06000

O-RING,59.40mm ID x 65.60mm OD x 3.10mm

1шт.

14

PM01V00007S014

RING

Ring, Cushion

1шт.

15

PM01V00007S015

SPACER

Spacer

1шт.

16

PM01V00007S016

STOP

Stopper

1шт.

17

PV01V00045S012

PISTON

1шт.

18

2438U988S16

SEAL

Ring

1шт.

19

PV01V00063S014

RING

Ring, Slide

2шт.

20

2438U988S18

SET SCREW

1шт.

21

2438U988S19

BALL

1шт.

22

PU01V00024S022

BEARING

Bearing, Cushion

1шт.

23

PU01V00024S023

PIPE

Pipe Assy

1шт.

24

PU01V00024S024

PIPE

Pipe Assy

1шт.

25

PU01V00024S025

PLUG

Plug

2шт.

26

ZD12P01500

O-RING

4шт.

27

PU01V00024S027

BOLT

Bolt

2шт.

28

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

2шт.

29

PU01V00024S029

HOLDER

Holder, Pipe

2шт.

30

PN54D01001D2

SEAL,35mm ID x 45mm OD x 4mm Thk

Seal, Dust

4шт.

31

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.

k

PU01V00024R100

TUBE

REPAIR KIT; Includes 1x1, 2x1, 30x2

1шт.

k

PU01V00024R200

ROD

REPAIR KIT; Includes 2x1, 3x1, 30x2

1шт.

k

PU01V00024R300

SEAL

REPAIR KIT; Includes 6x1, 7x1, 8x1, 9x1, 10x1, 11x1, 12x1, 13x1, 18x1, 19x2

1шт.
