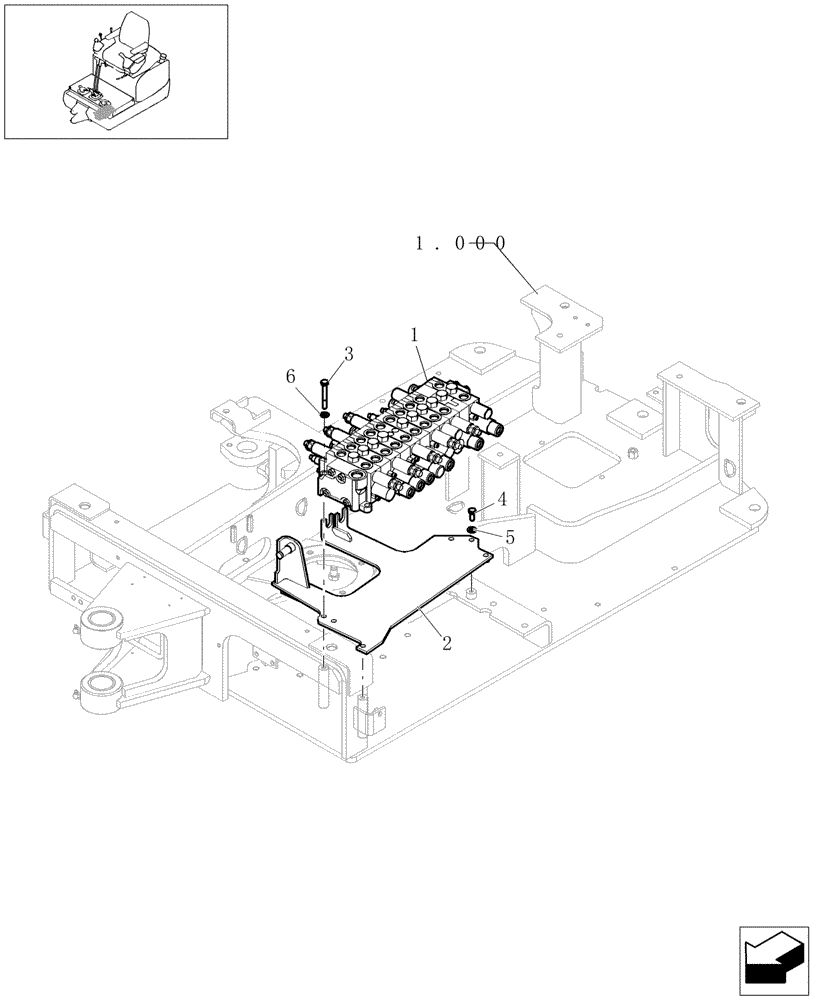

Запчасти Case CX16B (1.050[01]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

72274560

DISTRIBUTOR

1шт.

See Page 1.050 02

1шт.

Up To S/N N5GN01671

1шт.

1

87360433

DISTRIBUTOR

1шт.

See Page 1.050 02A

1шт.

From S/N N5GN01672 Up to S/N XXX

1шт.

1

72276961

DISTRIBUTOR

1шт.

From S/N XXX

1шт.

See Page 1.050 02B

1шт.

2

72271510

SUPPORT

1шт.

3

16044434

SCREW,M8 x 60mm, Cl 10.9

8X60

3шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

5

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

8

3шт.

6

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.
