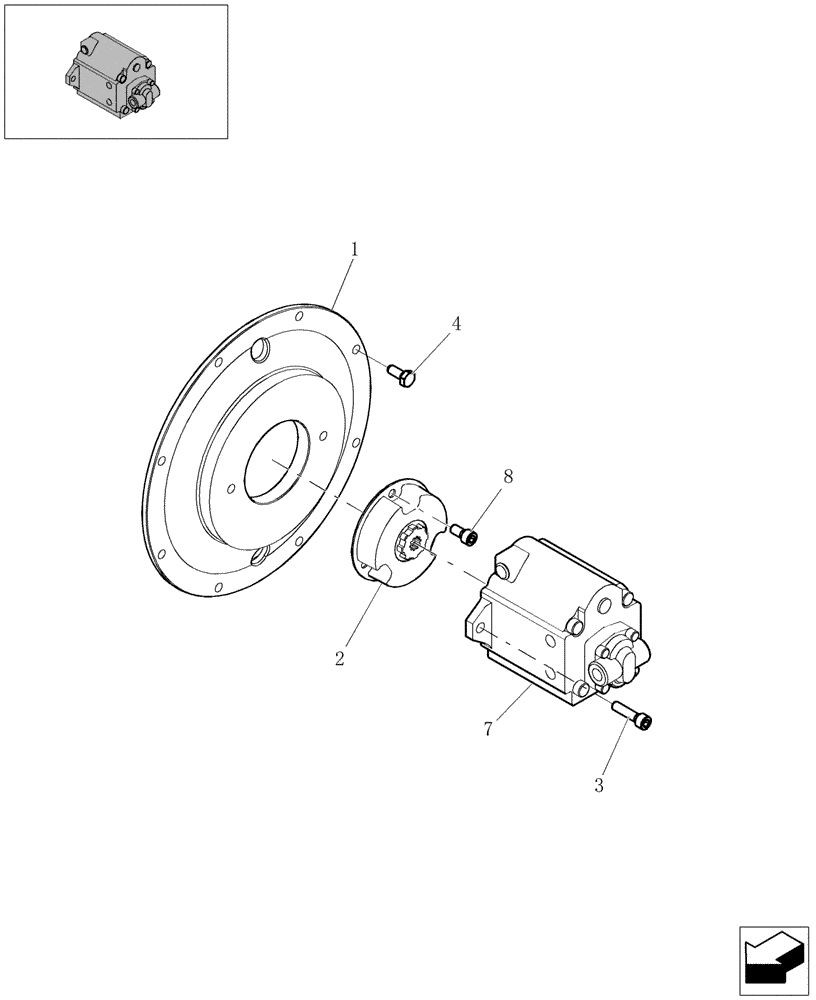

Запчасти Case CX16B (1.030[01]) - POWER TAKE OFF ASSY (35) - HYDRAULIC SYSTEMS

1

72271590

FLANGE

1шт.

2

72271591

COUPLING BLOCK

1шт.

3

14422074

SCREW,M12 x 30mm

10X40

2шт.

4

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

8шт.

7

72271592

PUMP

- ASSY

1шт.

See Page 1.030 01, 1.030 02

1шт.

8

14420074

SCREW,M10 x 20mm, Cl 12.9

10X20

3шт.
