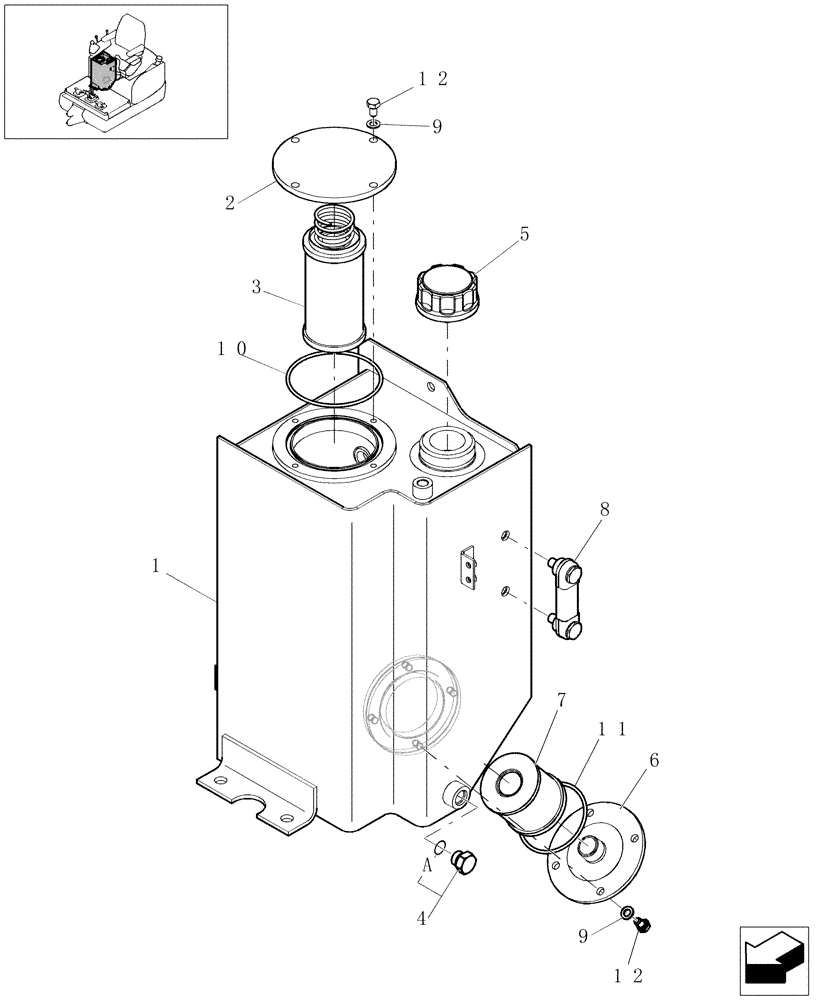

Запчасти Case CX16B (1.020[01]) - OIL TANK (35) - HYDRAULIC SYSTEMS

1

72276883

TANK

1шт.

2

72271061

FLANGE

1шт.

3

72271062

HYDRAULIC OIL FILTER

1шт.

4

71402272

PLUG,3/8"

1шт.

4a

71404165

O-RING,2.4mm Thk x 13.8mm ID, 90 Duro

1шт.

5

72103860

FILLER CAP,10 Micron

1шт.

6

72271072

PIPE

1шт.

7

72271079

FILTER STRAINER

1шт.

8

72271080

LEVEL

1шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

8шт.

10

14466080

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

11

71404170

O-RING,3.1mm Thk x 84.4mm ID, 90 Duro

1шт.

12

16043134

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

8шт.
