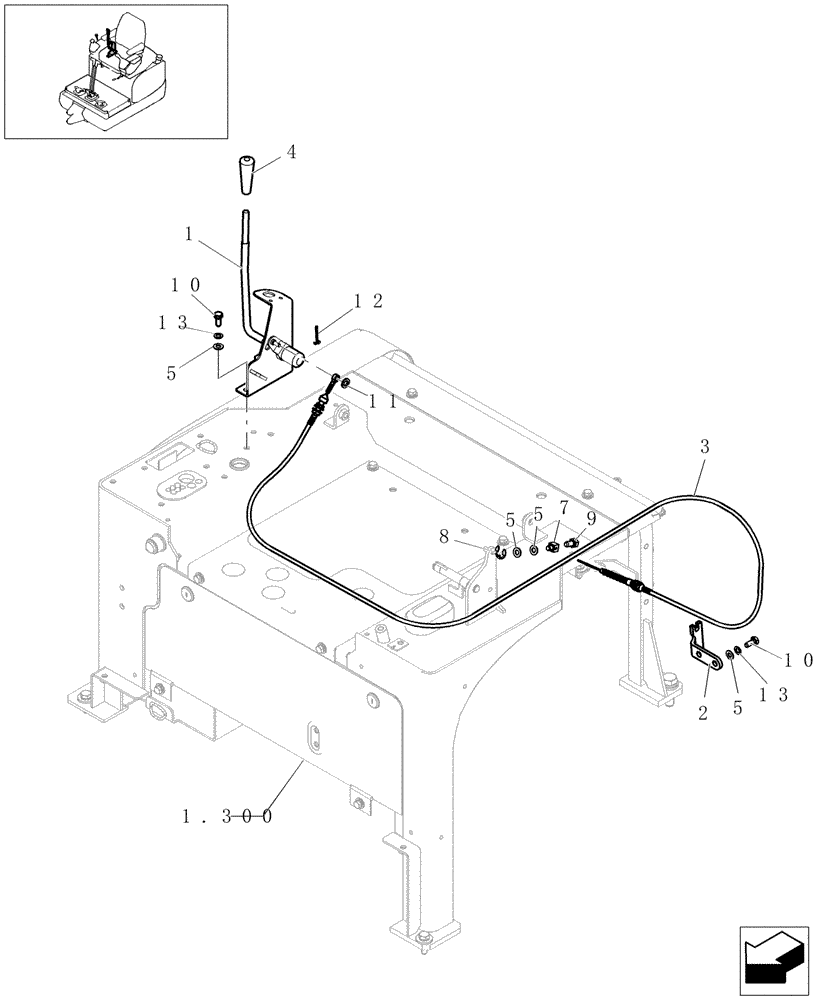

Запчасти Case CX16B (0.004[01]) - ENGINE ACCELERATOR CONTROLS (10) - ENGINE

1

72274971

LEVER

1шт.

See Page 0.004 02

1шт.

2

72270247

SUPPORT

1шт.

3

72270248

CABLE,2050mm L

1шт.

4

72270424

HANDLE

1шт.

5

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

7

72270425

PIN

1шт.

8

11087871

CIRCLIP,M7

1шт.

9

10977534

BOLT,Hex, M5 x 10mm, Cl 10.9, Full Thd

1шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

11

14499321

WASHER,M6 x 11 x 1.6 Thk

1шт.

12

10795101

COTTER PIN,M1.6 x 18

1шт.

13

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.
