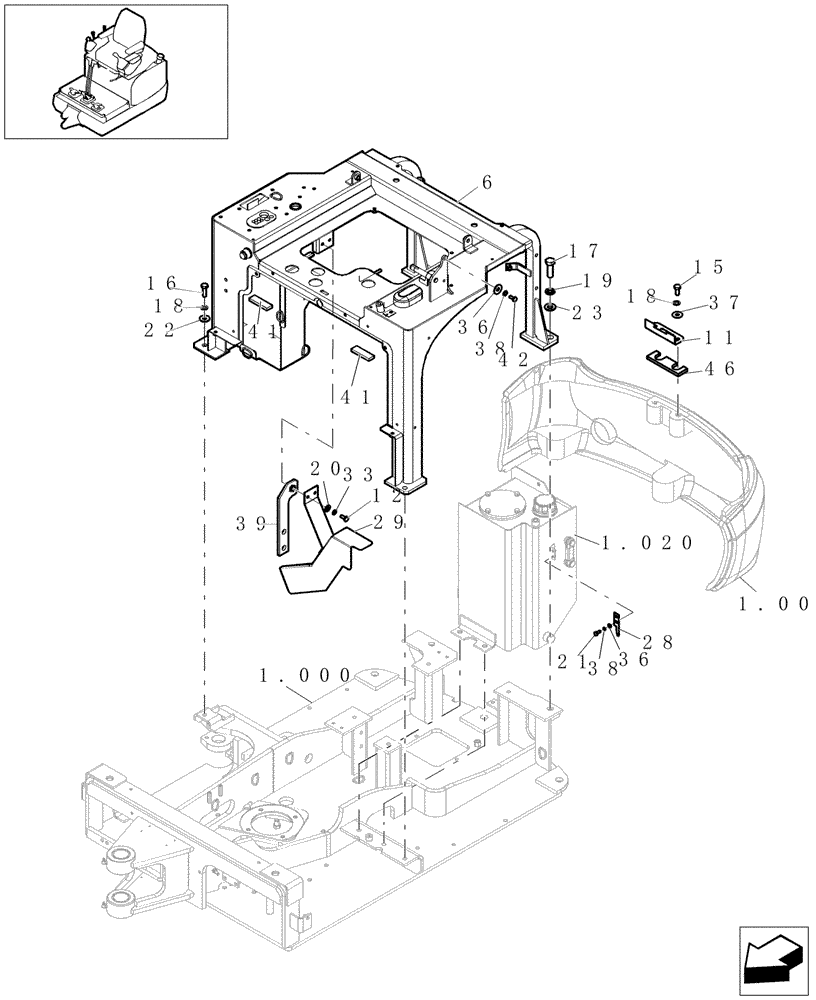

Запчасти Case CX16B (1.300[03]) - HOODS (90) - PLATFORM, CAB, BODYWORK AND DECALS

6

72276805

SET OF PARTS

1шт.

See Page 1.300 10

1шт.

11

72276041

BRACKET

1шт.

12

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

15

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

16

11106634

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

17

11118934

BOLT,Hex, M16 x 50mm, Cl 10.9

2шт.

18

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

19

10572179

LOCK WASHER,M16

2шт.

20

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

21

10902234

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

22

72201224

WASHER

4шт.

23

13580121

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

28

72275192

PLATE

1шт.

29

72274546

COVER

1шт.

33

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

36

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

5шт.

37

13578621

WASHER,10.2mm ID x 30mm OD x 2mm Thk

10x30x2

2шт.

38

10571579

LOCK WASHER,M6

5шт.

39

72276169

PLATE

1шт.

41

72277054

ADHESIVE STRIP

2шт.

42

10902034

SCREW

M6x12

3шт.

46

72277066

SHIM,0.5mm Thk

Ø 6

1шт.
