(1.250[09]) - OPERATOR‘S SEAT - DELUXE

Запчасти Case CX16B (1.250[09]) - OPERATOR‘S SEAT - DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

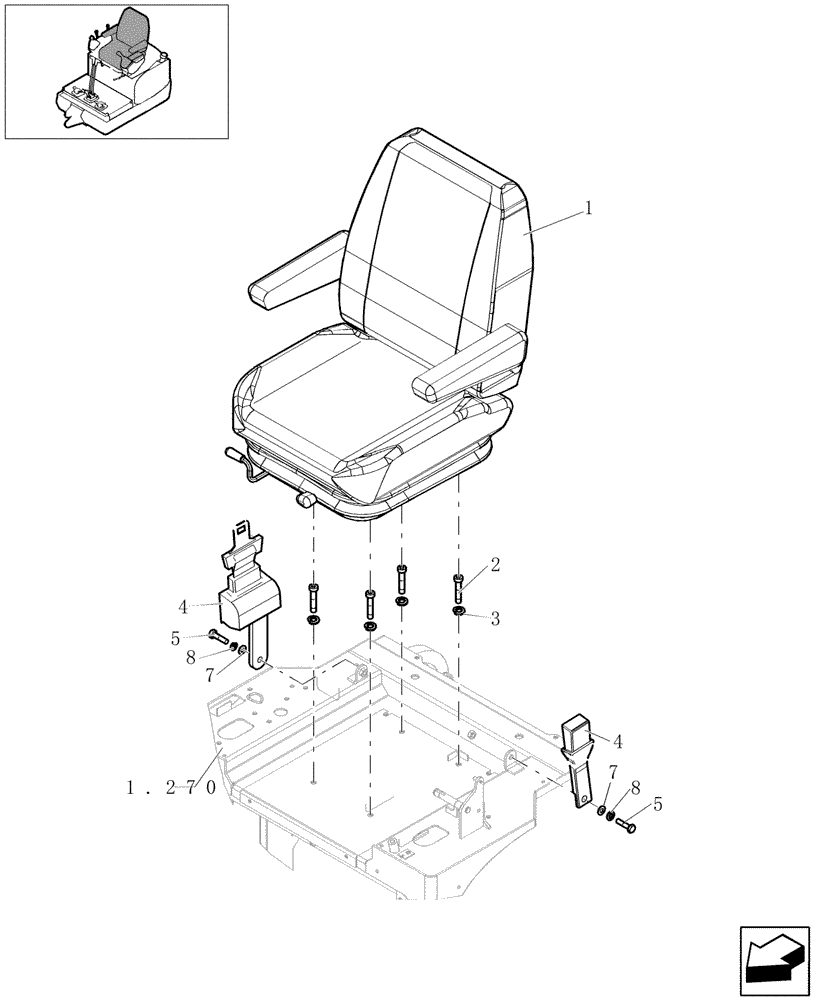

Схема запчастей Case CX16B - (1.250[09]) - OPERATOR‘S SEAT - DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
7
7
8
8
1.270
2
5
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

72274062

SEAT

1шт.

Only For Canopy Models

1шт.

See Page 1.250 10

1шт.

1

72274067

SEAT

1шт.

See Page 1.250 11

1шт.

Only For Cab Models

1шт.

2

14306374

SCREW,M8 x 20mm, Cl 12.9

M8x20

4шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

4

71406173

SAFETY BELT ,48.00 mm W

1шт.

5

11106234

BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd

2шт.

7

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.
