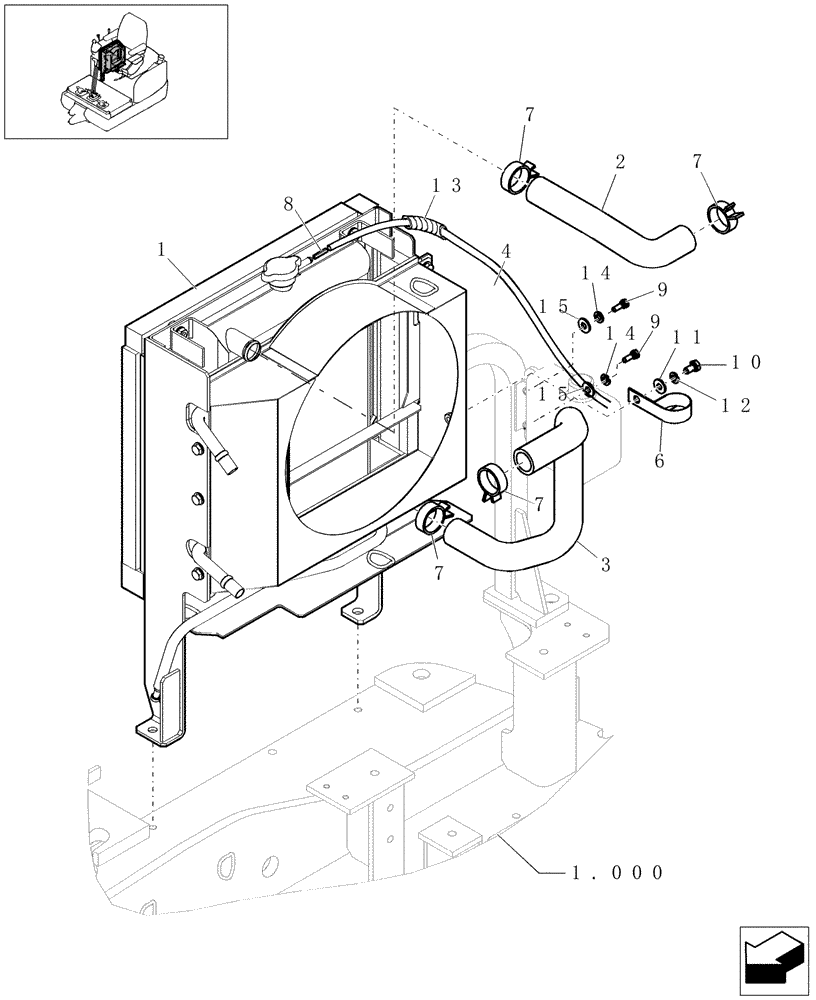

Запчасти Case CX16B (0.003[01]) - RADIATOR (10) - ENGINE

1

72276189

RADIATOR

1шт.

See Page 0.003 03

1шт.

2

72271568

FLEXIBLE HOSE

1шт.

3

72271569

FLEXIBLE HOSE

1шт.

4

72275235

HOSE

1шт.

6

71421085

CLIP

1шт.

7

13425577

HOSE CLIP,34.4mm - 37.3mm

4шт.

9

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

2шт.

10

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

11

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

1шт.

12

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

13

72275232

TUBE,15 mm ID, 21.2 mm OD, 350 mm Length

1шт.

14

10571579

LOCK WASHER,M6

2шт.

15

14496421

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6x12x1.6

2шт.
