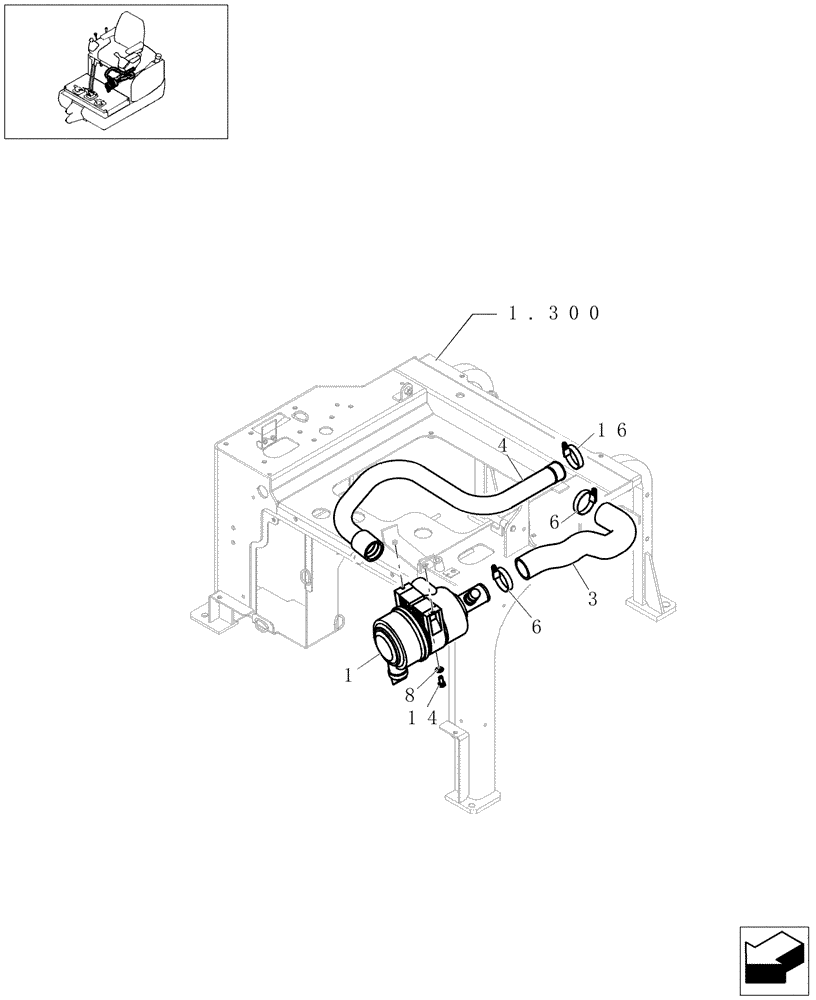

Запчасти Case CX16B (0.001[01]) - AIR CLEANER (10) - ENGINE

1

72274050

AIR CLEANER

1шт.

See Page 0.001 02

1шт.

3

72271571

HOSE,43.50 mm ID x 328.00 mm

1шт.

4

72274983

INTAKE AIR HOSE

1шт.

6

154220511

COLLAR

2шт.

8

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

14

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8x20

4шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.
