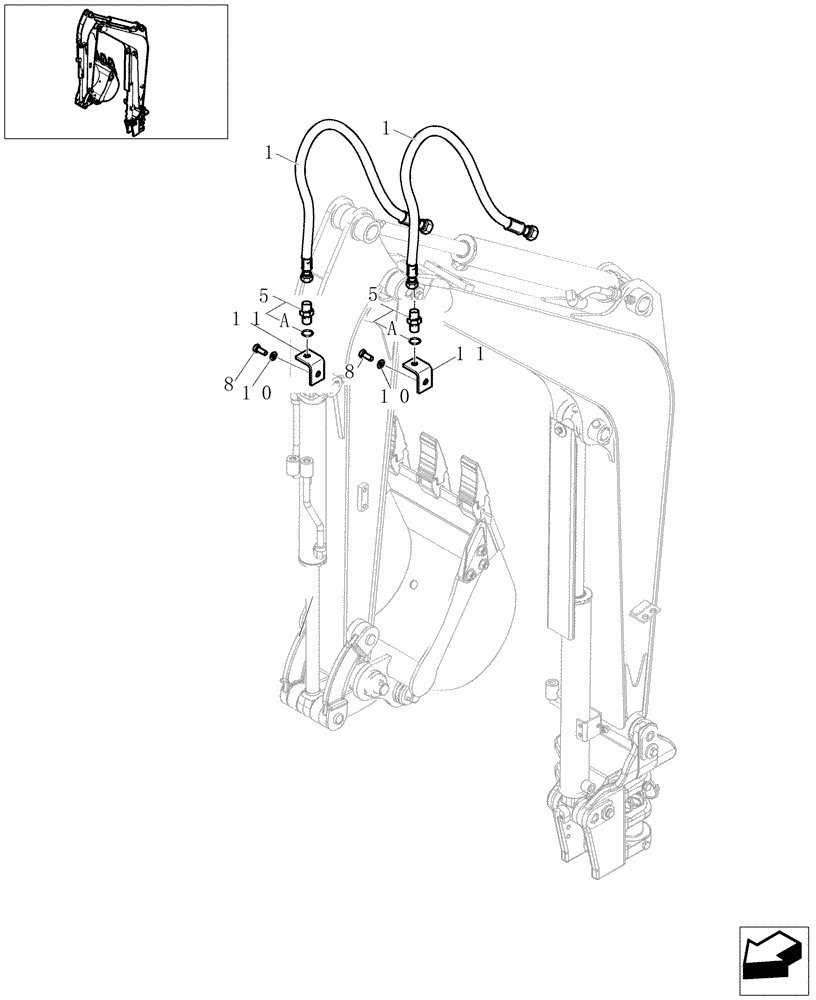

Запчасти Case CX16B (5.0038[03A]) - ARM HYD.LINES (1,22M) (84) - BOOMS, DIPPERS & BUCKETS

1

72276818

HOSE

2шт.

5

72276896

HYD CONNECTOR

2шт.

5a

71404166

O-RING,2.4mm Thk x 17.8mm ID, 90 Duro

2шт.

8

11106034

BOLT,Hex, M10 x 20, 10.9, Full Thd

10x1.5x16

4шт.

10

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

11

72276819

BRACKET

2шт.
