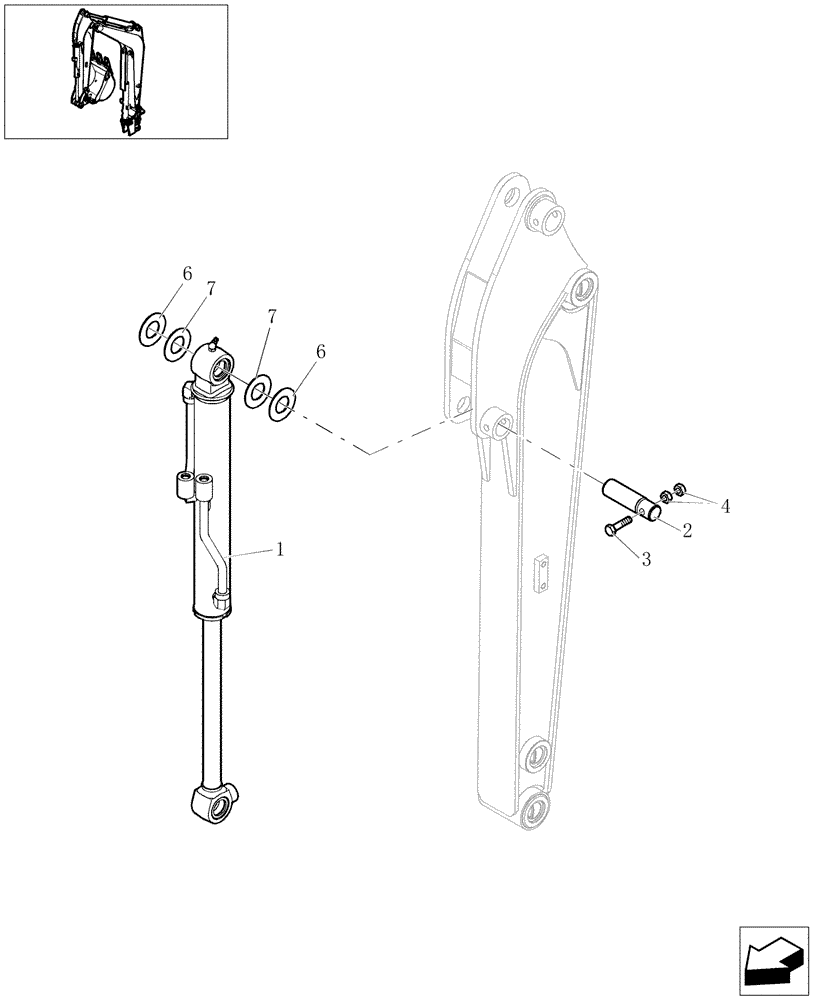

Запчасти Case CX16B (2.030[07]) - CYLINDER BUCKET (84) - BOOMS, DIPPERS & BUCKETS

1

72275094

CYLINDER

1шт.

See Page 2.030 10

1шт.

2

72271166

PIN,30mm OD x 112mm L

1шт.

3

11107634

SCREW

10x65

1шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

6

72270984

SHIM,31mm ID x 55mm OD x 0.90mm Thk

2шт.

7

72270985

SHIM

2шт.
