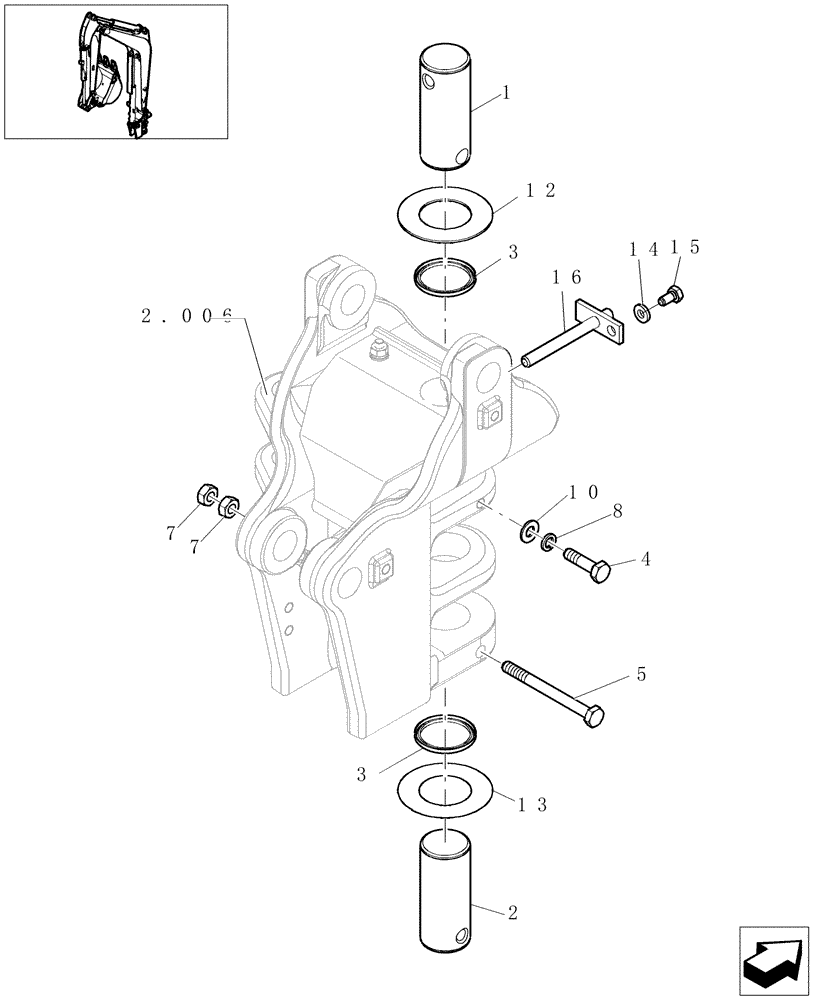

Запчасти Case CX16B (2.006[02]) - SWING BRACKET SUPPORT (84) - BOOMS, DIPPERS & BUCKETS

1

72270863

PIN

1шт.

2

72270864

PIN

1шт.

3

72270423

RING

2шт.

4

16040834

SCREW,M10 x 1.5 x 40mm, Cl 10.9

10x40

1шт.

5

11108434

BOLT,Hex, M10 x 110mm, Cl 10.9, Full Thd

1шт.

7

11701721

NUT,M10, Cl 10

2шт.

8

10569474

LOCK WASHER,10.2mm ID x 16mm ID x 2.5mm Thk

M10

1шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

72270061

WASHER

1шт.

13

72270060

SHIM,0.5mm Thk

1шт.

14

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

8x17

1шт.

15

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

16

72274538

PIN

1шт.
