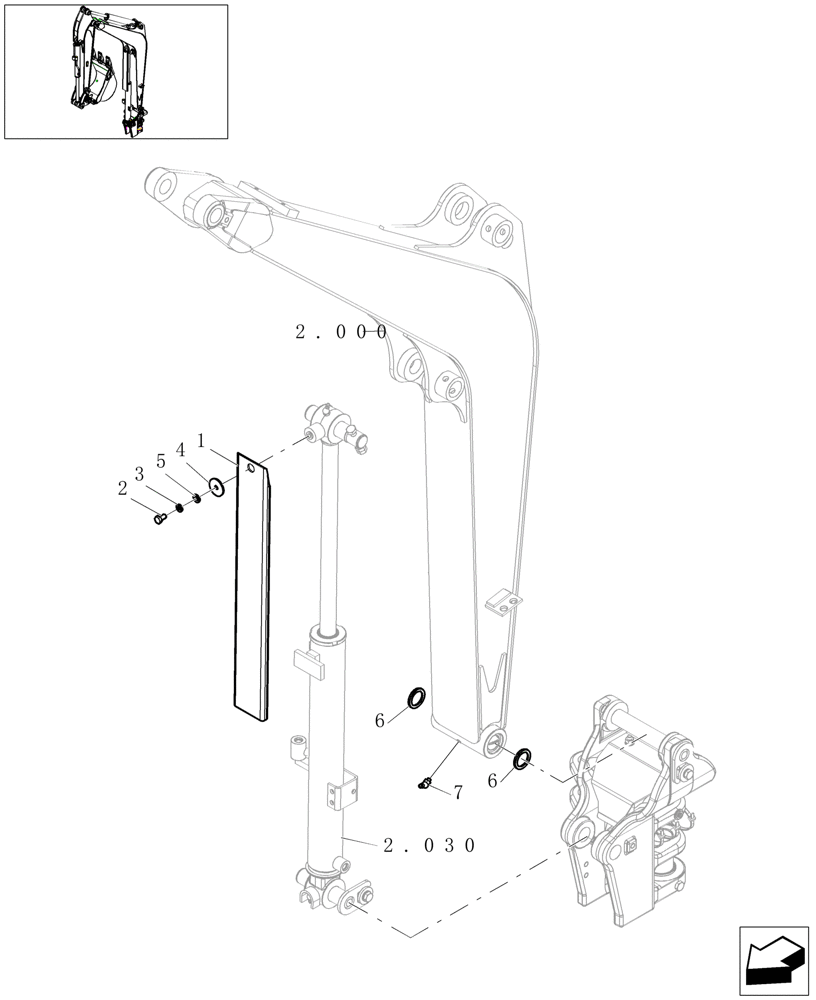

Запчасти Case CX16B (2.000[03]) - MONOBLOC BOOM (84) - BOOMS, DIPPERS & BUCKETS

1

72271013

COVER

1шт.

2

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

4

12646221

WASHER

8x35

1шт.

5

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

8x16

1шт.

6

72270409

SEALING RING

2шт.

7

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

1шт.
