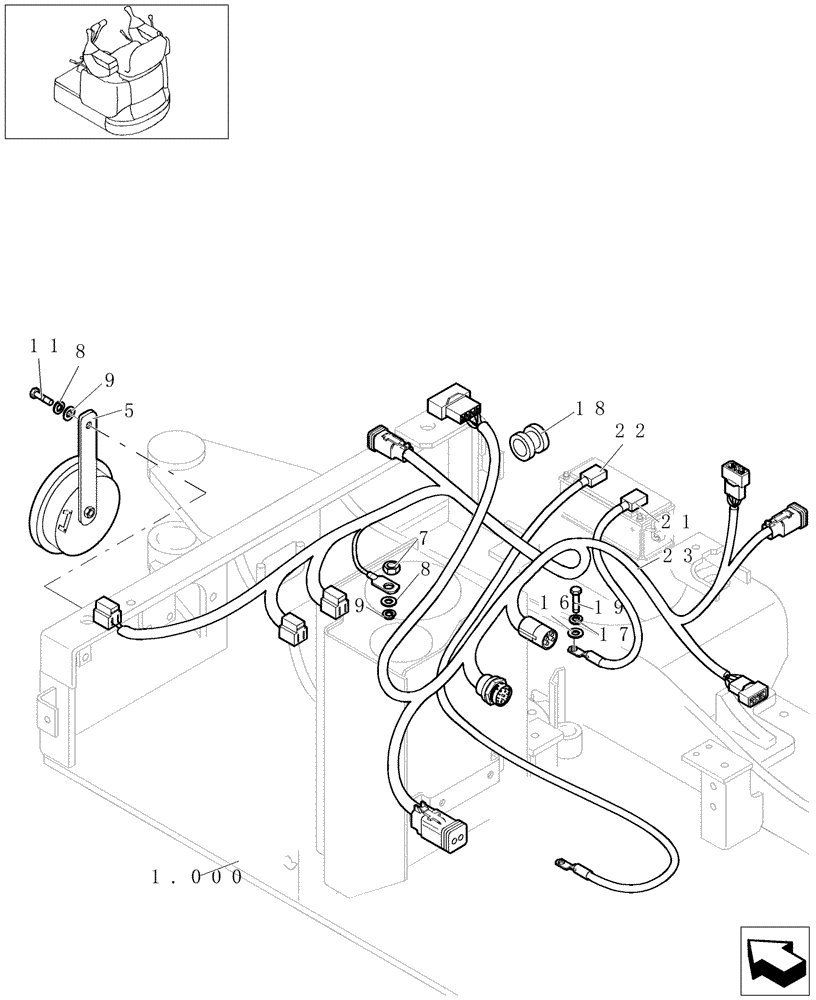

Запчасти Case CX16B (1.220[08]) - ELECTRIC SYSTEM - HARNESS UPPER FRAME (55) - ELECTRICAL SYSTEMS

5

87689317

HORN

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

1шт.

11

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

16

12642521

WASHER,10.2mm ID x 22mm OD x 2mm Thk

1шт.

17

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

18

72273942

GROMMET

1шт.

19

10979234

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

1шт.

21

72273934

ELECTRIC CABLE

1шт.

22

72273935

ELECTRIC CABLE

1шт.

23

72273301

WIRE HARNESS

1шт.
