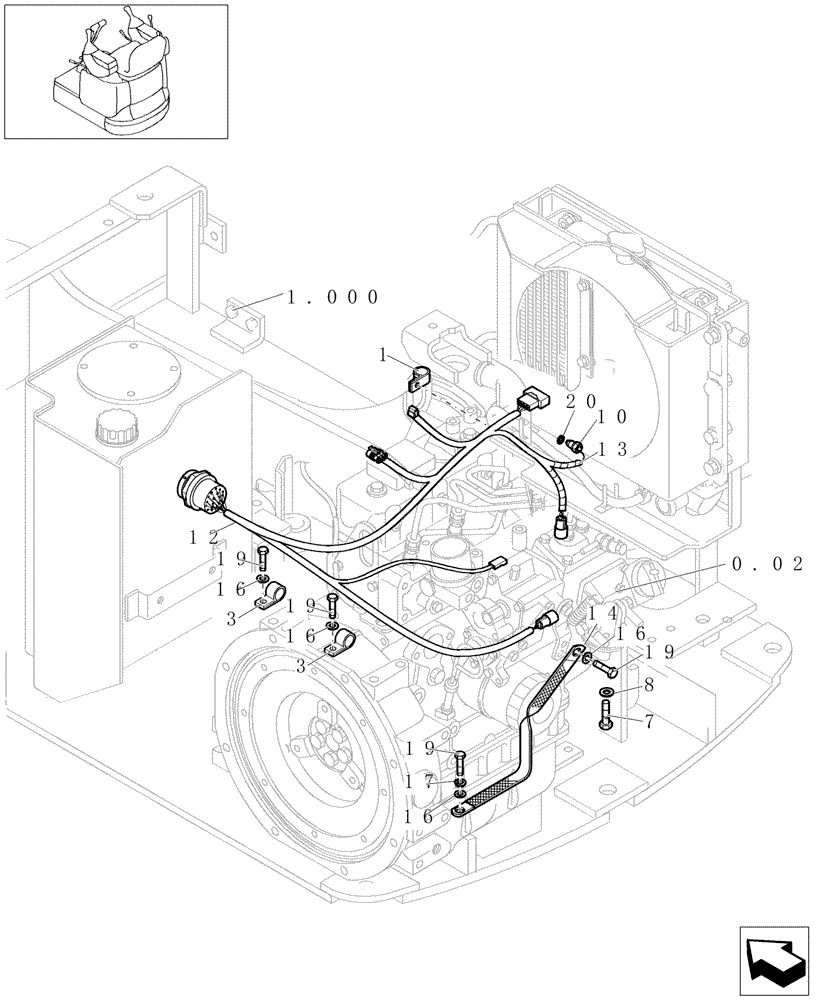

Запчасти Case CX16B (1.220[07]) - ELECTRIC SYSTEM - ENGINE HARNESS (55) - ELECTRICAL SYSTEMS

1

71415899

CLIP,M14, M12 Bolt

1шт.

3

71405746

CLIP

2шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

72951914

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

1шт.

From S/N XXX

1шт.

12

72273944

WIRE HARNESS

1шт.

13

72273929

PLASTIC-RUBBER TUBE,8.5 mm ID, 12.9 mm OD, 110 mm Length

1шт.

14

72273932

ELECTRIC CABLE

1шт.

16

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

17

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

19

10979234

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

4шт.

20

72952747

PACKING

1шт.

From S/N XXX

1шт.
