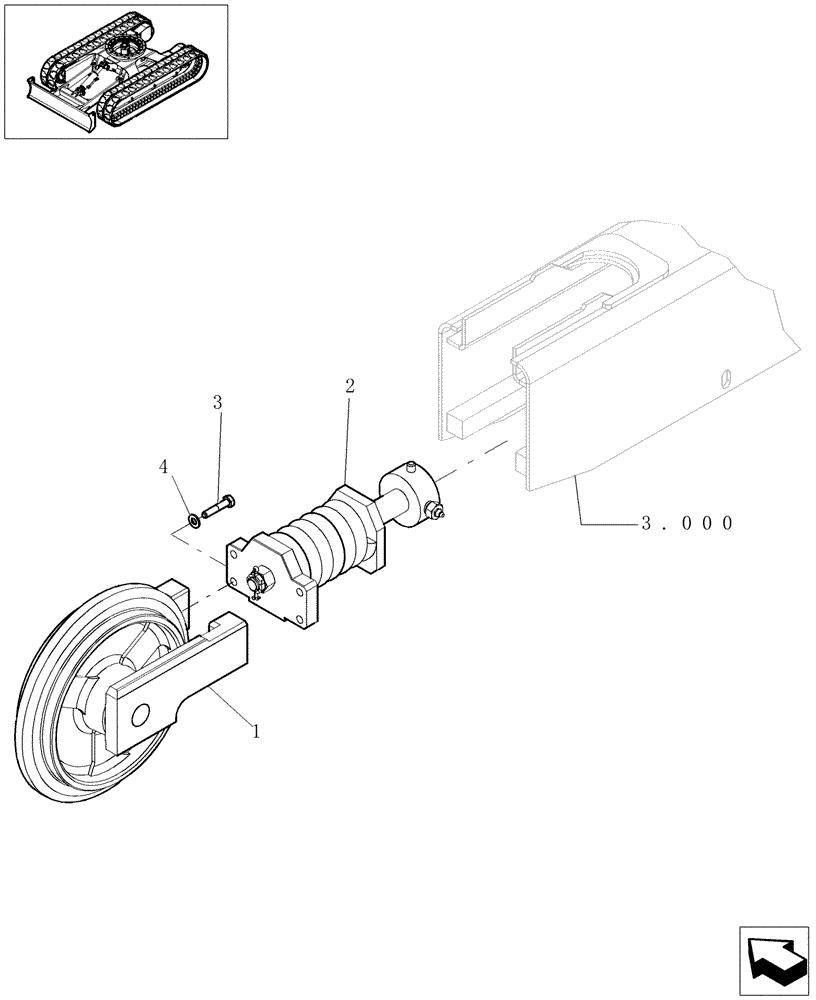

Запчасти Case CX16B (3.020[01]) - IDLER ADJUSTER (48) - TRACKS & TRACK SUSPENSION

72271215

FLEETING PULLEY

2шт.

Consist of 1 to 4

1шт.

1

72272761

FLEETING PULLEY

1шт.

See Page 3.020 02

1шт.

2

72272762

TENSIONER

1шт.

See Page 3.020 03

1шт.

3

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

8x40

4шт.

4

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
