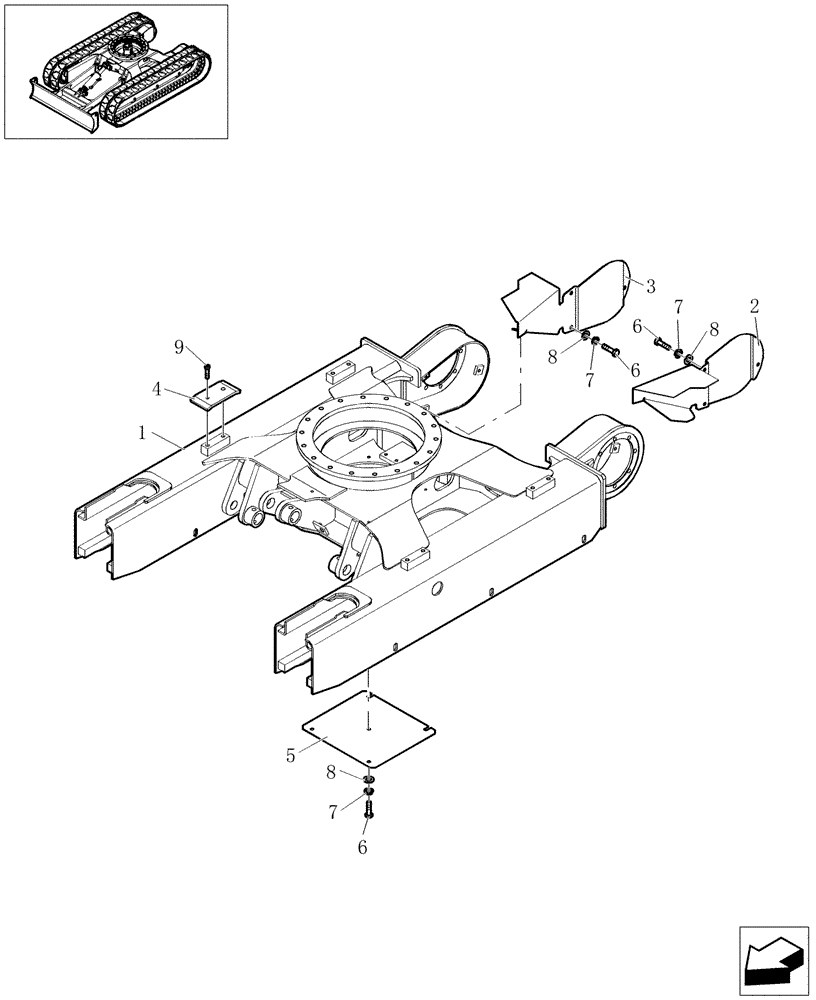

Запчасти Case CX16B (3.000[01]) - LOWER FRAME (39) - FRAMES AND BALLASTING

1

72270670

FRAME

1шт.

2

72270671

COVER

1шт.

3

72270672

COVER

1шт.

4

72270673

SUPPORT

4шт.

5

72270674

COVER

1шт.

6

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

10шт.

7

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

10шт.

8

12654421

WASHER,8.15mm ID x 17mm OD x 3mm Thk

8x16.7

10шт.

9

14420074

SCREW,M10 x 20mm, Cl 12.9

10x20

8шт.
