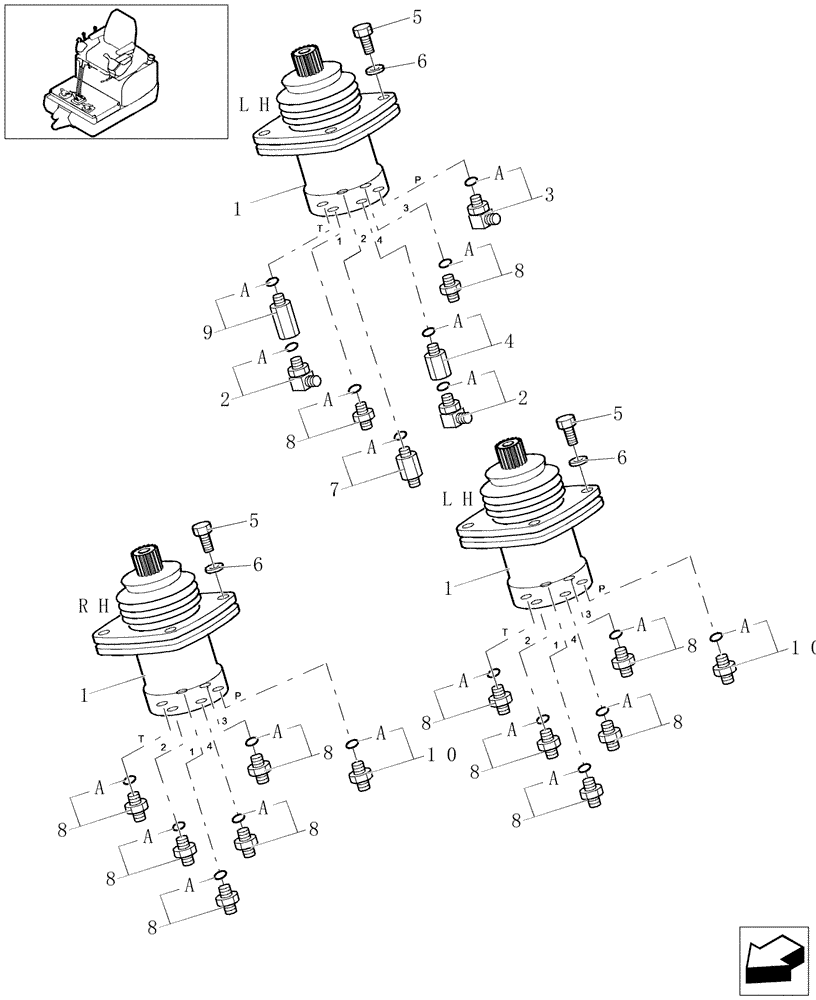

Запчасти Case CX16B (1.080[03]) - PILOT VALVE PIPING (35) - HYDRAULIC SYSTEMS

1

72271609

MANIPULATOR

2шт.

See Page 1.070 15

1шт.

2

72271236

HYD CONNECTOR

2шт.

2a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

2шт.

3

72274991

HYD CONNECTOR

1шт.

3a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

1шт.

4

72271289

HYD CONNECTOR

1шт.

4a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

1шт.

5

16050634

SCREW,M6 x 30mm, Cl 10.9

6X30

8шт.

6

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

8шт.

7

72271506

HYD CONNECTOR

1шт.

7a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

1шт.

8

72271158

HYD CONNECTOR

7шт.

Up To S/N XXX

1шт.

8

47043979

ADAPTER

10шт.

FROM TO S/N XXX

1шт.

8a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

7шт.

9

72271504

HYD CONNECTOR

1шт.

9a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

1шт.

10

72274999

HYD CONNECTOR

1шт.

Up To S/N XXX

1шт.

10

47044056

ADAPTER

2шт.

FROM TO S/N XXX

1шт.

10a

71404163

O-RING,2.4mm Thk x 10.8mm ID, 90 Duro

1шт.
