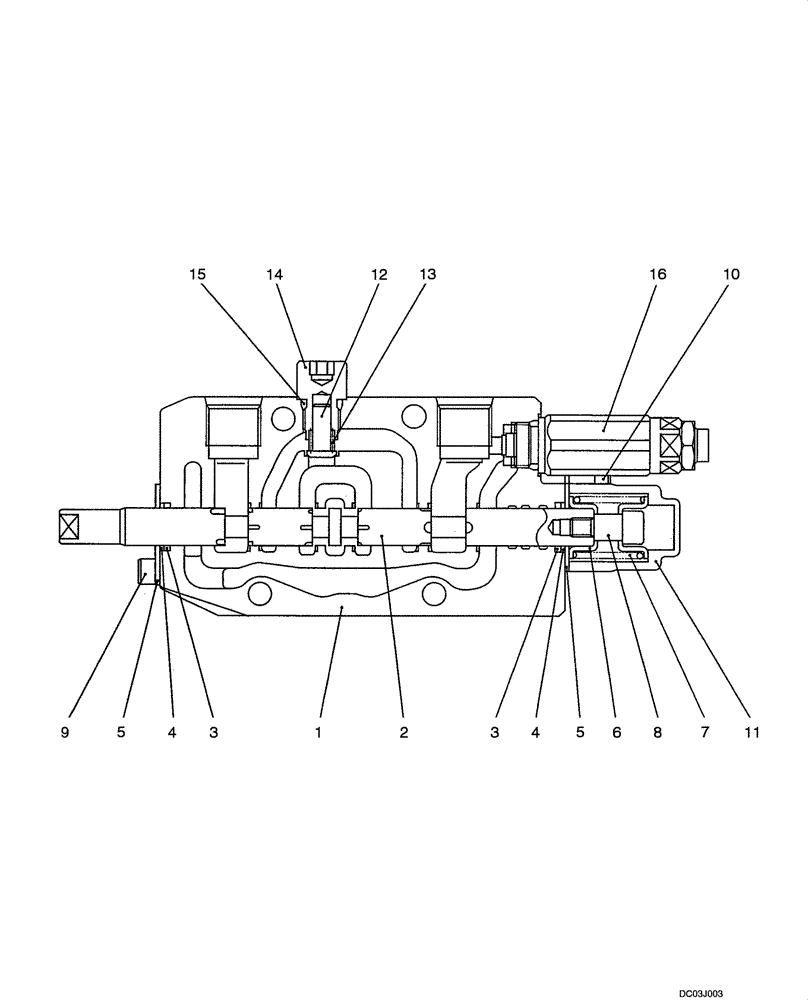

Запчасти Case CX47 (08-35[00]) - VALVE ASSY - DOZER BLADE (08) - HYDRAULICS

PH30V00020F1

CONTROL VALVE

Incl. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

4

NSS

NOT SOLD SEPARAT

Seal, Dust

2шт.

5

NSS

NOT SOLD SEPARAT

Plate

2шт.

6

NSS

NOT SOLD SEPARAT

Seat, Spring

2шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

9

ZS23C06012

SCREW,Hex Socket Head, M6 x 12mm

2шт.

10

ZS23C06022

CAPSCREW,Hex Socket Head, M6 x 22mm

2шт.

11

PH30V00010S010

CAP

1шт.

12

PH30V00003S006

POPPET

1шт.

13

PH30V00003S007

SPRING

1шт.

14

PH30V00009S015

PLUG

1шт.

15

ZD12P01100

O-RING

1шт.

16

PM22V00005F3

VALVE PRESSURE RELIE

See Figure 08 -48

1шт.

PH30V00020R100

REPAIR KIT

Incl. 2 - 8

1шт.
