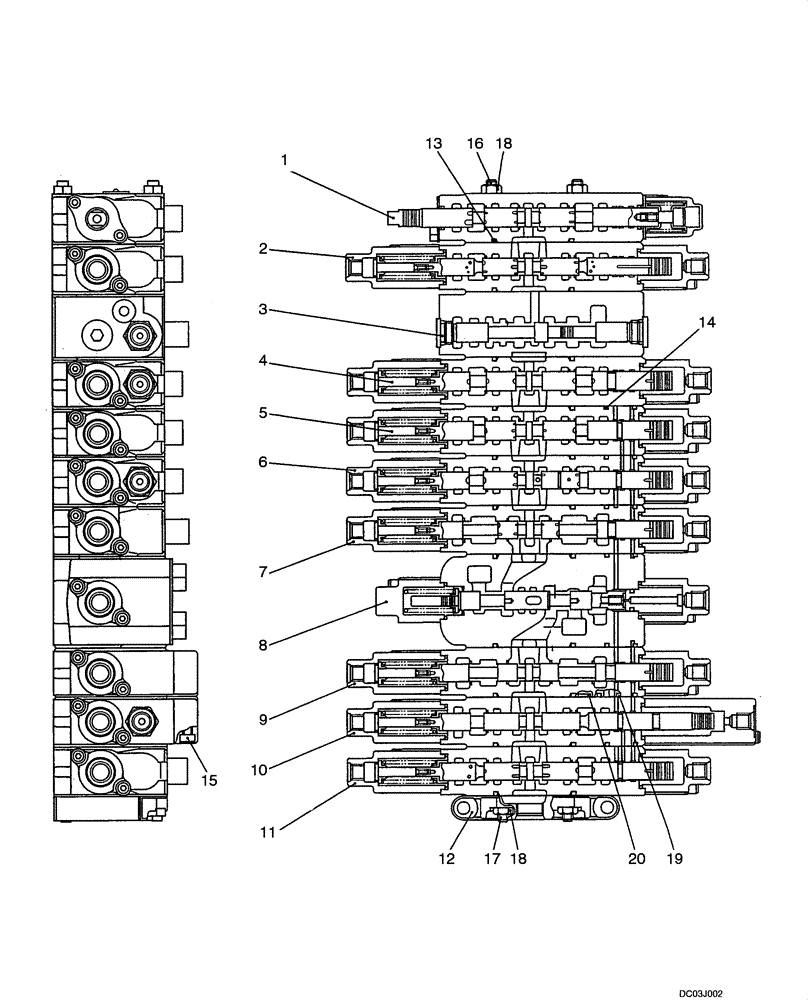

Запчасти Case CX47 (08-34[00]) - VALVE ASSY - CONTROL (08) - HYDRAULICS

PY30V00029F1

CONTROL

1шт.

1

PH30V00020F1

CONTROL VALVE

Dozer See Figure 08 -35

1шт.

2

PY30V00013F1

REPAIR KIT

Swing See Figure 08 -36

1шт.

3

PY30V00014F1

VALVE

Supply See Figure 08 -37

1шт.

4

PY30V00031F1

CONTROL VALVE

VALVE, Control Service See Figure 08 -38

1шт.

5

PY30V00027F1

CONTROL VALVE

Swing See Figure 08 -39

1шт.

6

PY30V00016F2

PLUG

VALVE, Control Arm See Figure 08 -41

1шт.

7

PY30V00017F1

PLUG

VALVE, Control Travel Right See Figure 08 -42

1шт.

8

PY30V00018F1

VALVE

Supply & Stright Travel See Figure 08 -43

1шт.

9

PY30V00019F1

VALVE

Travel Left See Figure 08 -44

1шт.

10

PY30V00020F1

CONTROL VALVE

Boom See Figure 08 -40

1шт.

11

PH30V00030F1

CONTROL VALVE

Bucket See Figure 08 -45

1шт.

12

PH30V00001S012

COVER

1шт.

13

YN01V00004S006

O-RING

11шт.

14

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

7шт.

15

ZS23C06040

SCREW,Hex Socket Head, M6 x 40mm

1шт.

16

PW30V00003S013

BOLT

4шт.

17

PH30V00001S021

BOLT

4шт.

18

ZN18C08007

NUT

8шт.

19

ZD12P01400

O-RING

1шт.

20

ZD12P00600

O-RING

2шт.
