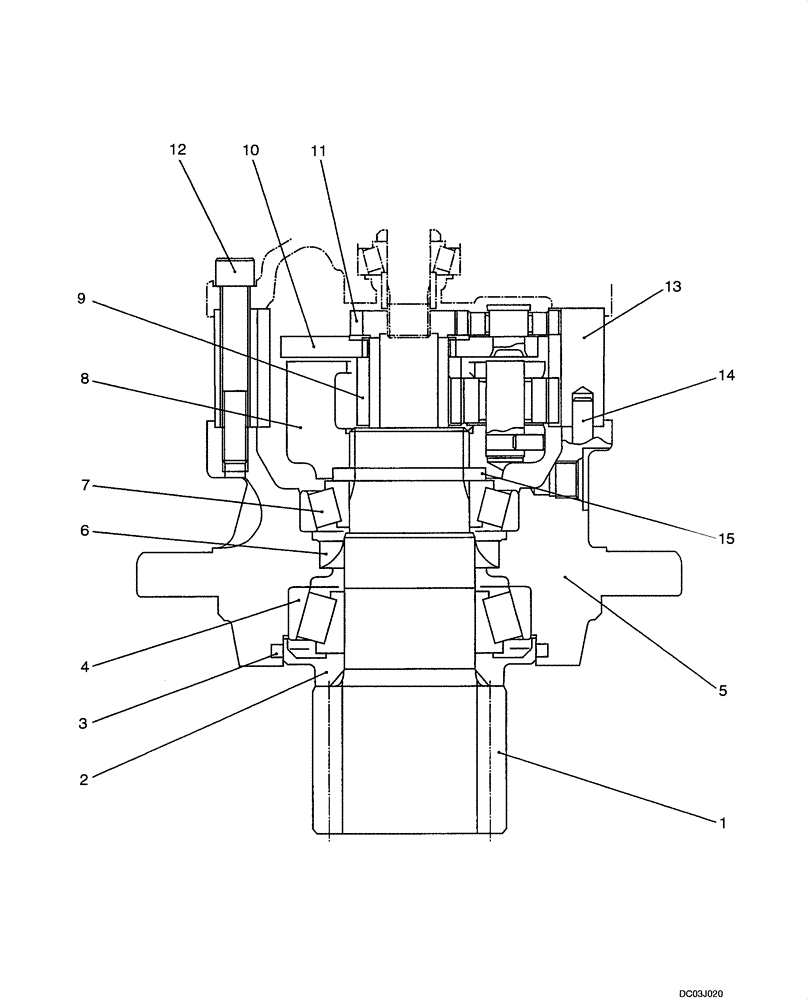

Запчасти Case CX47 (08-31[00]) - REDUCTION - MOTOR, SWING (08) - HYDRAULICS

PY32W00004F1

REDUCER

Incl. 1 - 15

1шт.

1

PH32W00004S001

SHAFT

1шт.

2

PY32W00001S001

COLLAR CLAMP

1шт.

3

ZD12P11500

O-RING

1шт.

4

PY32W00001S003

BEARING

1шт.

5

PH32W00004S005

CASE

1шт.

6

PY32W00001S020

GASKET

1шт.

7

PY32W00001S005

BEARING

1шт.

8

YJ32W00002S008

HOLDER

1шт.

9

YJ32W00002S009

GEAR

1шт.

10

PY32W00004S010

HOLDER

1шт.

11

PY32W00004S011

SUN GEAR

1шт.

12

ZS23C12080

SCREW,Hex Socket Head, M12 x 80mm

6шт.

13

PH32W00004S013

RING GEAR

1шт.

14

PY32W00001S019

PIN

2шт.

15

YJ32W00002S015

COLLAR

2шт.
