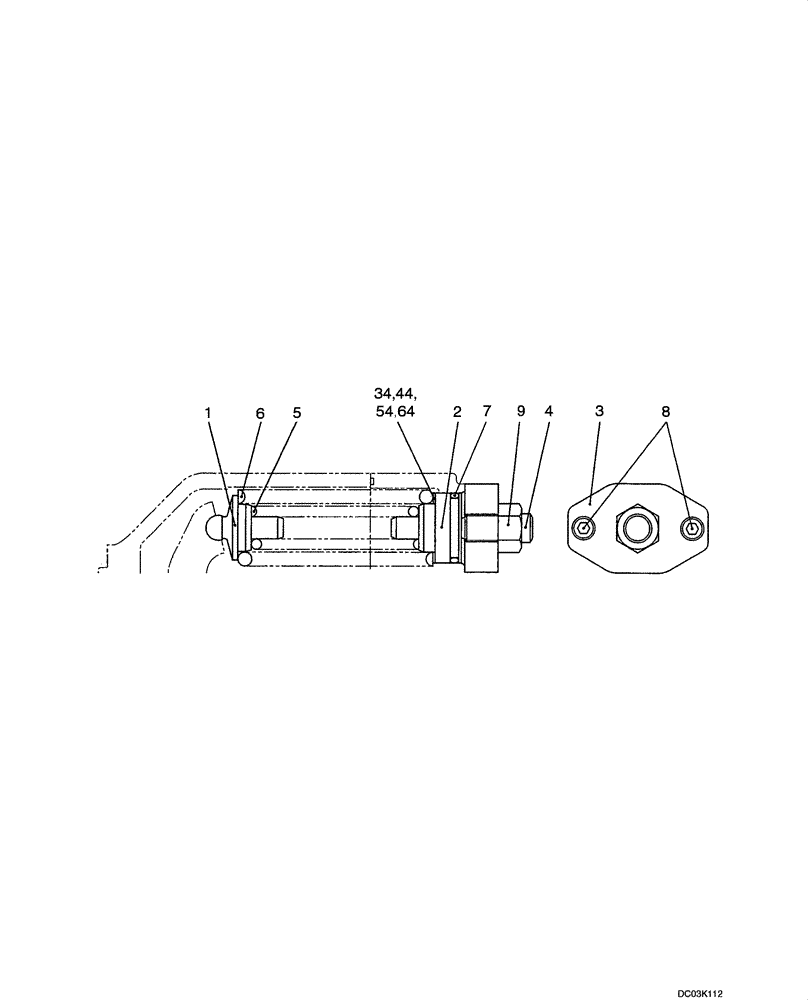

Запчасти Case CX47 (08-23[00]) - PUMP - SPRING (08) - HYDRAULICS

PH10V01003F1

SPRING

Incl. 1 - 64

1шт.

1

PY10V01004S001

SPRING SEAT

1шт.

2

PH10V01003S002

SPRING SEAT

1шт.

3

PY10V01004S003

COVER

1шт.

4

PY10V01004S004

ADJUSTMENT SCREW

1шт.

5

PH10V01003S005

SPRING

1шт.

6

PH10V01003S006

SPRING

1шт.

7

ZD11P03400

O-RING

1шт.

8

ZS23C08030

SCREW,Hex Socket Head, M8 x 30mm

2шт.

9

PY10V01004S009

NUT

1шт.

34

PW10V00001S046

SHIM,0.3mm Thk

2шт.

44

PW10V00001S047

SHIM,0.5mm Thk

2шт.

54

PW10V00001S048

SHIM,1.0mm Thk

2шт.

64

PW10V00001S049

SHIM,2.0mm Thk

2шт.
