(08-17[00]) - PUMP ASSY (PY10V00009F1) CANOPY

Запчасти Case CX47 (08-17[00]) - PUMP ASSY (PY10V00009F1) CANOPY (08) - HYDRAULICS

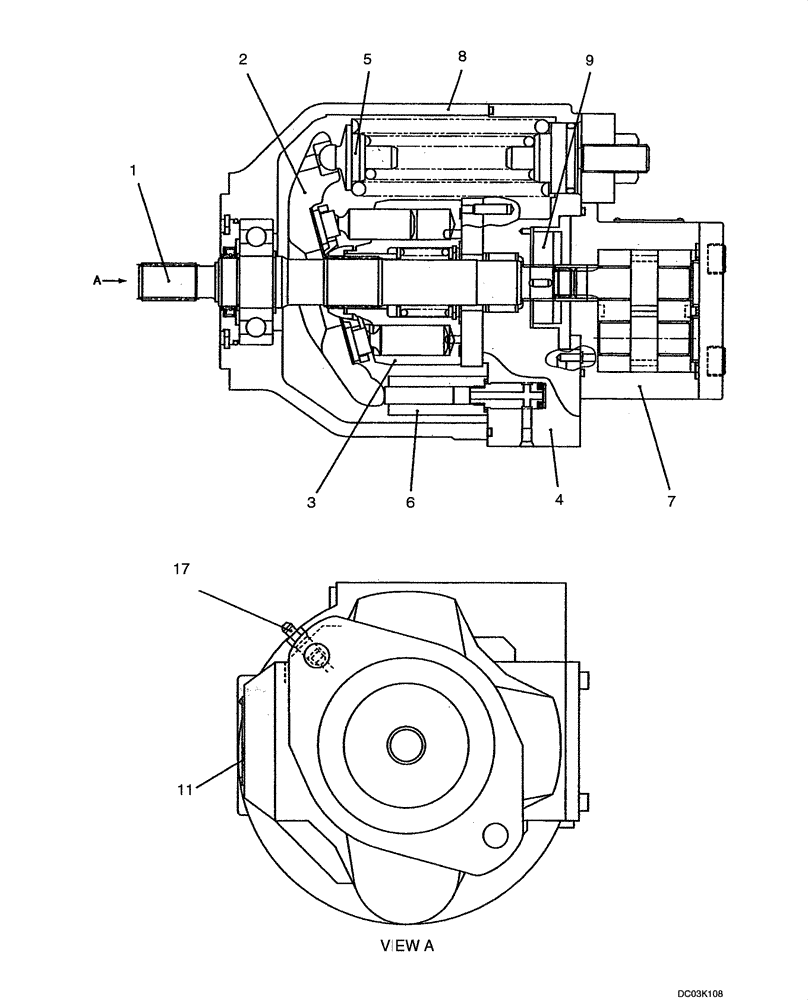

Схема запчастей Case CX47 - (08-17[00]) - PUMP ASSY (PY10V00009F1) CANOPY (08) - HYDRAULICS
5
9
17
6
1
8
4
11
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY10V00009F1

PUMP

Assy. (Canopy) Incl. 1 - 17

1шт.

1

PH10V01001F1

SHAFT ASSY.

See Figure 08 -19

1шт.

2

PY10V01002F1

BLOCK ASSY.

See Figure 08 -20

1шт.

3

PY10V01005F1

ROTOR ASSY.

See Figure 08 -21

1шт.

4

PY10V01007F1

COVER ASSY

See Figure 08 -22

1шт.

5

PH10V01003F1

SPRING

See Figure 08 -23

1шт.

6

PY10V01008F1

PISTON ASSY

See Figure 08 -24

1шт.

7

PH10V00006F1

PUMP

See Figure 08 -25

1шт.

8

NSS

NOT SOLD SEPARAT

Body Assy.

1шт.

9

PH10V00007F1

PUMP

See Figure 08 -26

1шт.

11

PY10V00009S011

IDENTITY PLATE

1шт.

17

PY10V00007S017

BREATHER

1шт.

Выбрано товаров: 12
