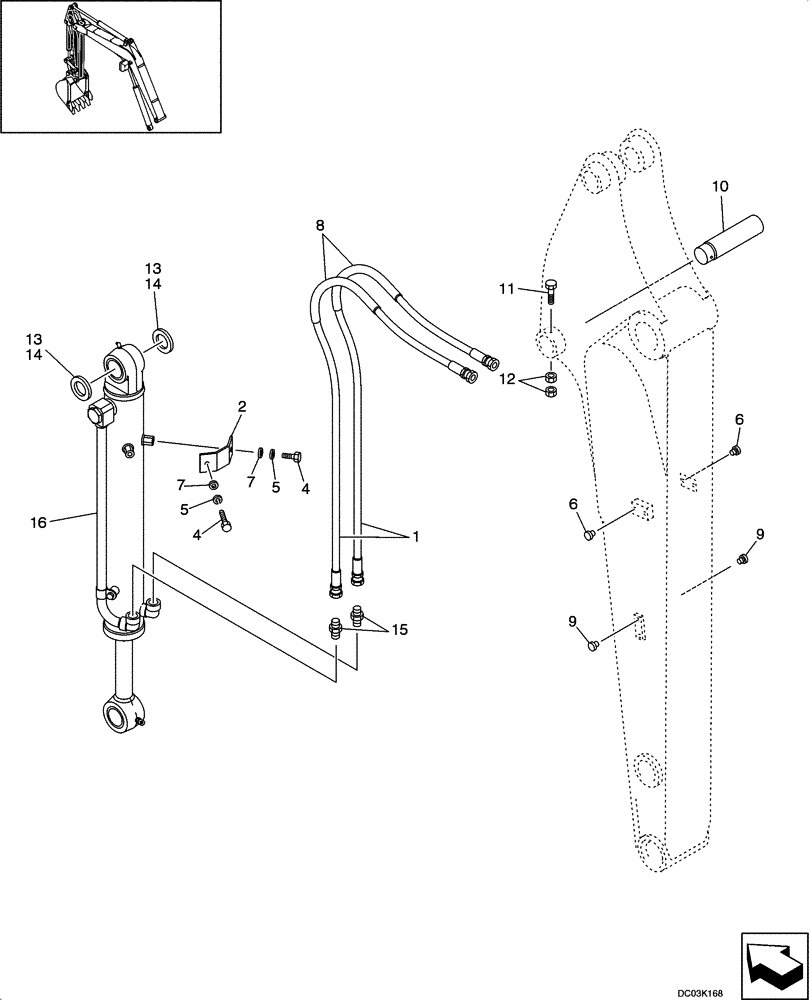

Запчасти Case CX47 (08-16[00]) - HYDRAULIC LINES - ARM (08) - HYDRAULICS

1

YJ42H01133DC

HOSE ASSY.

2шт.

2

PH43H01033P1

CLAMP

1шт.

4

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

5

ZW26X08000

LOCK WASHER

2шт.

6

PV02B01073D2

CAP

4шт.

7

ZW16H08000

WASHER

2шт.

8

2414Z199D75

PROTECTIVE SLEEVE

2шт.

9

PV02B01073D4

CAP

4шт.

10

PH12B01084P1

PIN

1шт.

11

HS18C12090G1

SCREW

1шт.

12

ZN18C12010

NUT

2шт.

13

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

14

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

15

HH25S08008G1

HYD CONNECTOR

2шт.

16

PH01V00016F3

CYLINDER ASSY.

Bucket See Figure 08 -63

1шт.
