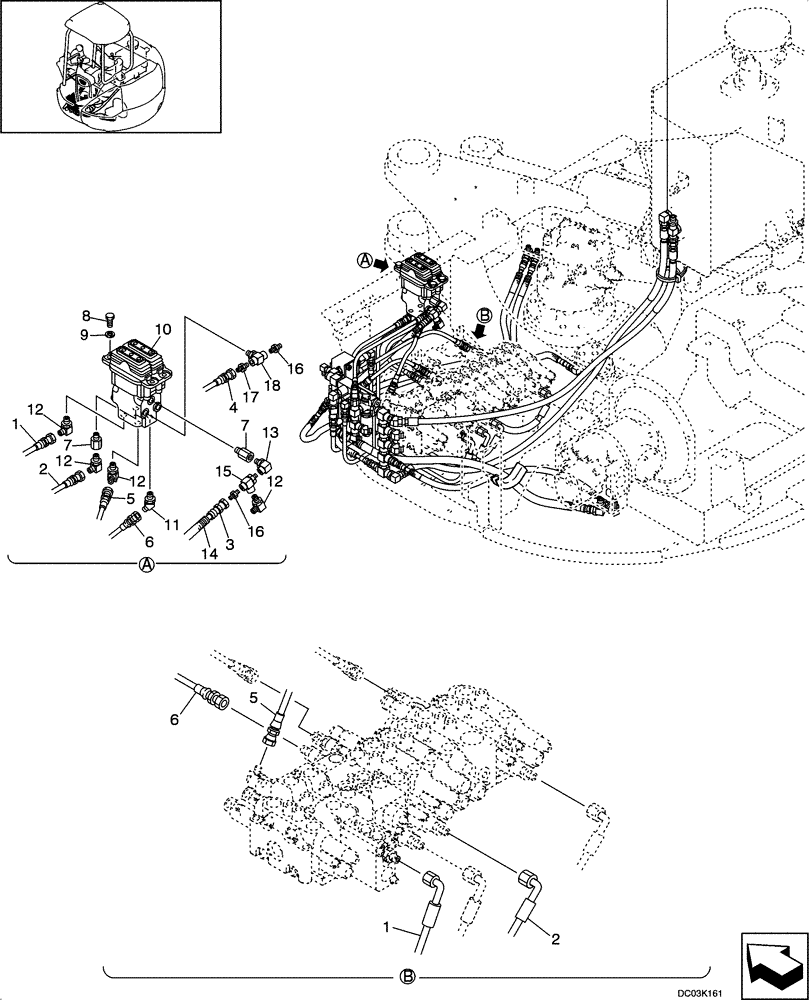

Запчасти Case CX47 (08-10[00]) - HYDRAULICS - PILOT CONTROL LINES, TRAVEL (08) - HYDRAULICS

1

HX34L04084DX

HOSE ASSY.

1шт.

2

HX34L04074DX

HOSE ASSY.

1шт.

3

HX22L04052DX

HOSE ASSY.

1шт.

4

HX24L04050DX

HOSE ASSY.

1шт.

5

HX24L04026DX

HOSE ASSY.

1шт.

6

HX23L04028DX

HOSE ASSY.

1шт.

7

2444Z2525

HYD CONNECTOR

2шт.

8

ZS18C08025

SCREW,Hex, M8 x 25mm

4шт.

9

ZW16H08000

WASHER

4шт.

10

PM30V00019F4

PILOT VALVE

See Figure 08 -52

1шт.

11

HH45S04004G1

45 ELBOW

1шт.

12

HH35S04004G1

90 ELBOW

4шт.

13

2444Z2894

90 ELBOW

1шт.

14

PU13E01010DE

TUBE

1шт.

15

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

16

HH25S04004G1

HYD CONNECTOR

2шт.

17

HH25S04004G3

HYD CONNECTOR

1шт.

18

2444Z4239

TEE

1шт.
