(08-04[00]) - HYDRAULIC LINES - UPPER

Запчасти Case CX47 (08-04[00]) - HYDRAULIC LINES - UPPER (08) - HYDRAULICS

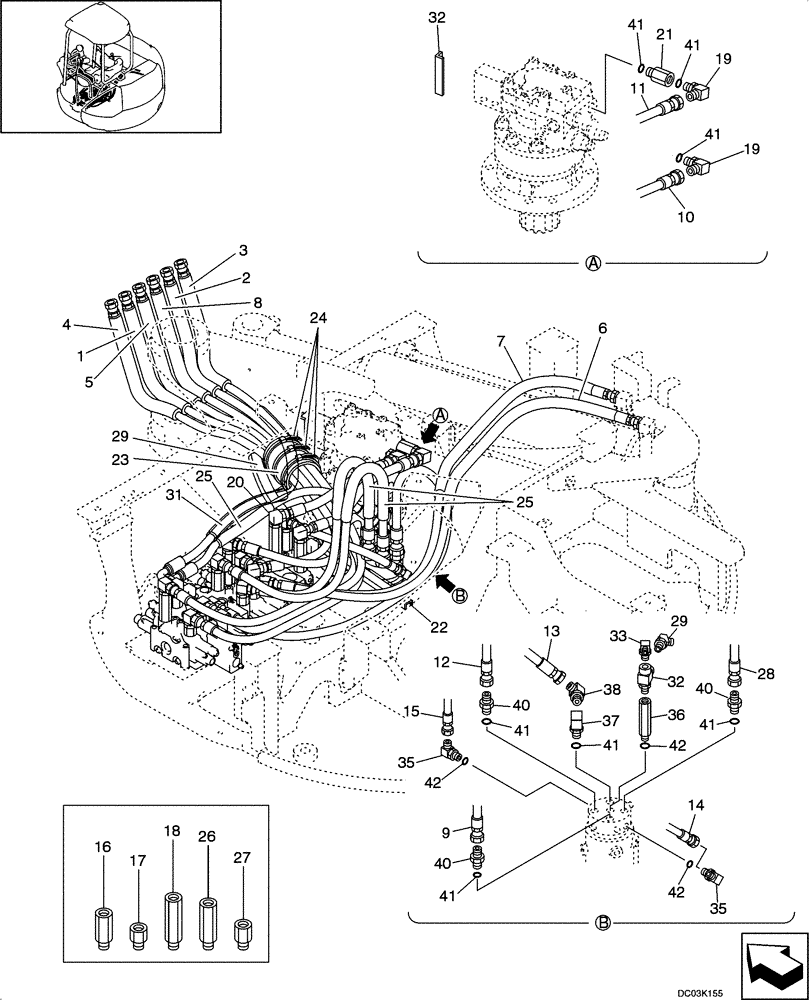

Схема запчастей Case CX47 - (08-04[00]) - HYDRAULIC LINES - UPPER (08) - HYDRAULICS
29
14
20
41
35
38
9
16
24
41
35
13
42
4
19
32
37
41
22
27
17
40
33
25
18
12
31
41
2
11
21
40
40
10
3
41
6
19
15
42
42
41
28
29
8
41
23
32
7
36
26
1
5
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PH03H01085D7

HOSE ASSY.

Arm (H)

1шт.

2

PH03H01085DE

HOSE ASSY.

Arm (R)

1шт.

3

PH03H01095D1

HOSE ASSY.

Boom (R)

1шт.

4

PH03H01085D8

HOSE ASSY.

Boom (H)

1шт.

5

PH03H01085D9

HOSE ASSY.

Bucket (H)

1шт.

6

PH03H01084D1

HOSE ASSY.

Swing (H)

1шт.

7

PH03H01084D3

HOSE ASSY.

Swing (R)

1шт.

8

PH03H01085DA

HOSE ASSY.

Bucket (R)

1шт.

9

HX25L08084DY

HOSE ASSY.

Swivel Joint

1шт.

10

HX25L08038DY

HOSE ASSY.

Swing Motor

1шт.

11

HX25L08044DY

HOSE ASSY.

Swing Motor

1шт.

12

HX25L08072DY

HOSE ASSY.

Swivel Joint

1шт.

13

HX35L08072DX

HOSE ASSY.

Swivel Joint

1шт.

14

HX25L06044DY

HOSE ASSY.

Swivel Joint

1шт.

15

HX25L06034DY

HOSE ASSY.

Swivel Joint

1шт.

16

HH25R08008G6

HYD CONNECTOR

Incl. 41

3шт.

17

HH25R08008GB

HYD CONNECTOR

Incl. 41

4шт.

18

HH25R08008G1

HYD CONNECTOR

Incl. 41

3шт.

19

HH35S08008G1

90 ELBOW

Incl. 41

14шт.

20

HH35S06008G1

ELBOW

Incl. 41

4шт.

21

2444T2958

HYD CONNECTOR

Incl. 41

1шт.

22

YT64H01029D2

RUBBER

1шт.

23

YN64H01018P1

GROMMET

1шт.

24

PY01P01043D8

CABLE TIE,102mm L

3шт.

25

2414Z199D25

PROTECTIVE SLEEVE

3шт.

26

PH32H01006P1

HYD CONNECTOR

Incl. 41

1шт.

27

2444Z3713

HYD CONNECTOR

Incl. 41

2шт.

28

HX25L08092DY

HOSE ASSY.

Swivel Joint

1шт.

29

YT64H01029D7

RUBBER

1шт.

31

YN20M01046DV

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 950.00mm

TUBE

1шт.

32

YY64H01054D1

RUBBER

RUBBER

1шт.

33

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

1шт.

34

HH35Q06006G1

TEE

1шт.

35

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

Incl. 42

2шт.

36

HH25R06006G4

HYD CONNECTOR

Incl. 42

1шт.

37

2444Z3715

90 ELBOW

Incl. 41

1шт.

38

HH35S08008G1

90 ELBOW

1шт.

39

HH45S06006G1

45 ELBOW

1шт.

40

HH25S08008G1

HYD CONNECTOR

Incl. 41

3шт.

41

ZD12P01800

O-RING

33шт.

42

ZD12P01400

O-RING

3шт.
