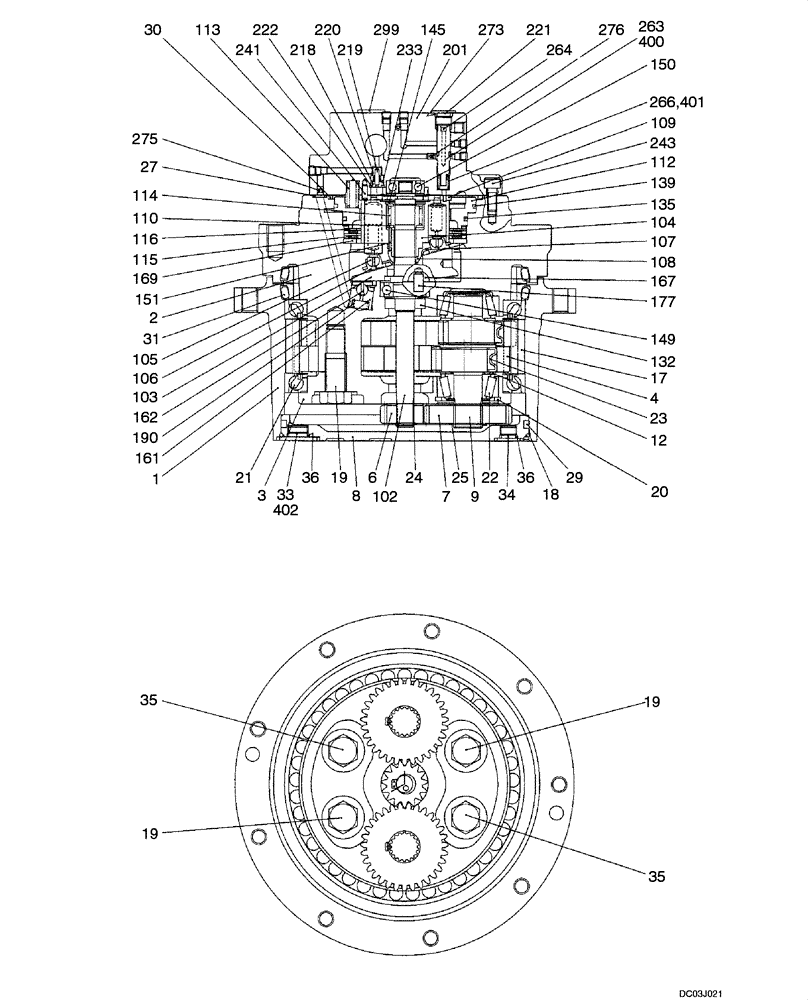

Запчасти Case CX47 (06-03[00]) - MOTOR - TRACK DRIVE (06) - POWER TRAIN

PY15V00009F3

MOTOR

Incl 1 - 402

1шт.

PY15V00009F3R

REMAN-HYD MOTOR

CX47

1шт.

PY15V00009F3C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1

PH15V00009S001

HUB

1шт.

2

NSS

NOT SOLD SEPARAT

Spindle

1шт.

3

NSS

NOT SOLD SEPARAT

Flange

1шт.

4

NSS

NOT SOLD SEPARAT

Gear

2шт.

6

PY15V00009S006

GEAR

GEAR

1шт.

7

NSS

NOT SOLD SEPARAT

Gear

2шт.

8

PH15V00009S008

COVER

1шт.

9

NSS

NOT SOLD SEPARAT

Shaft

2шт.

12

NSS

NOT SOLD SEPARAT

Spacer

4шт.

17

PH15V00009S017

PIN

28шт.

18

2441U831S18

RING

1шт.

19

2441U831S19

BOLT

2шт.

20

2441U532S19

RING

2шт.

21

PH15V00009S021

BALL BEARING

2шт.

22

NSS

NOT SOLD SEPARAT

Bearing, Roller

4шт.

23

NSS

NOT SOLD SEPARAT

Bearing, Needle

4шт.

24

ZR16X01500

SNAP RING

1шт.

25

ZR16X02500

RING

4шт.

27

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

29

ZD11G20000

O-RING,5.7mm Thk x 199.3mm ID, 70 Duro

1шт.

30

PH15V00009S030

O-RING

1шт.

31

NSS

NOT SOLD SEPARAT

Seal

2шт.

34

YR15V00002S121

PLUG

2шт.

35

PH15V00009S035

BOLT

2шт.

36

ZD12P01400

O-RING

3шт.

102

PH15V00009S102

SHAFT

1шт.

103

PH15V00009S103

PLATE

1шт.

104

YJ15V00002S104

BLOCK

1шт.

105

NSS

NOT SOLD SEPARAT

Piston

9шт.

106

NSS

NOT SOLD SEPARAT

Shoe

9шт.

107

2441U831S107

RETAINING PLATE

1шт.

108

2441U831S108

BALL

1шт.

109

PH15V00009S109

PLATE

1шт.

110

2441U831S110

WASHER

2шт.

112

PH15V00009S112

PISTON

1шт.

113

PH15V00009S113

SPRING

8шт.

114

YJ15V00002S114

SPRING

1шт.

115

YJ15V00002S115

PLATE

2шт.

116

YJ15V00002S116

PLATE

2шт.

132

2441U831S132

OIL SEAL

1шт.

135

PY15V00005S135

O-RING

1шт.

139

PH15V00009S139

O-RING

1шт.

145

2441U831S145

RING

1шт.

149

YJ15V00002S149

BALL BEARING

1шт.

150

2441U831S150

BALL BEARING

1шт.

151

PH15V00009S151

ROLLER

3шт.

161

NSS

NOT SOLD SEPARAT

Piston

1шт.

162

NSS

NOT SOLD SEPARAT

Shoe

1шт.

167

PY15V00006S167

SPOOL

2шт.

169

YJ15V00002S169

PLATE

1шт.

177

PH15V00009S177

PIN

2шт.

190

PH15V00009S190

SPRING

1шт.

201

NSS

NOT SOLD SEPARAT

Flange

1шт.

218

YJ15V00002S118

SEAT

1шт.

219

PH15V00009S219

CHECK VALVE

1шт.

220

YJ15V00002S120

SPRING

1шт.

222

YJ15V00002S122

RING

1шт.

233

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

1шт.

241

2441U815S141

PIN

2шт.

243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

6шт.

264

NSS

NOT SOLD SEPARAT

Stopper

1шт.

276

PH15V00009S276

ORIFICE

1шт.

299

PH15V00009S299

LABEL

1шт.

400

NSS

NOT SOLD SEPARAT

Spool

1шт.

401

PH15V00009S401

SPRING

1шт.

402

YT15V00008S033

PLUG

1шт.

PH15V00009R300

REPAIR KIT

Incl. 2, 3, 19, 35

1шт.

PH15V00009R310

REPAIR KIT

Incl. 4, 9, 12, 22, 23

1шт.

PY15V00009R320

REPAIR KIT

REPAIR KIT, Incl. 7

1шт.

PH15V00009R330

REPAIR KIT

Incl. 31

1шт.

PH15V00009R340

REPAIR KIT

Incl. 105, 106

9шт.

PH15V00009R350

REPAIR KIT

Incl. 161, 162

1шт.

PH15V00009R380

REPAIR KIT

Incl. 27, 29, 30, 31, 36, 132, 135, 139, 233, 236, 237, 273

1шт.

PH15V00009R390

REPAIR KIT

Incl. 201, 218 - 228, 230, 233, 236, 237, 252, 254, 264, 268, 273, 275, 276, 280, 299, 400,401

1шт.

PH15V00009R410

REPAIR KIT

Incl. 264, 400

1шт.

PH15V00009R420

REPAIR KIT

Incl. 2, 3

1шт.

PH15V00009R430

REPAIR KIT

Incl. 201, 223

1шт.

PH15V00009R440

REPAIR KIT

REPAIR KIT, Incl. 105, 106

1шт.

PH15V00009R450

REPAIR KIT

Repair Kit, Incl. 1

1шт.
