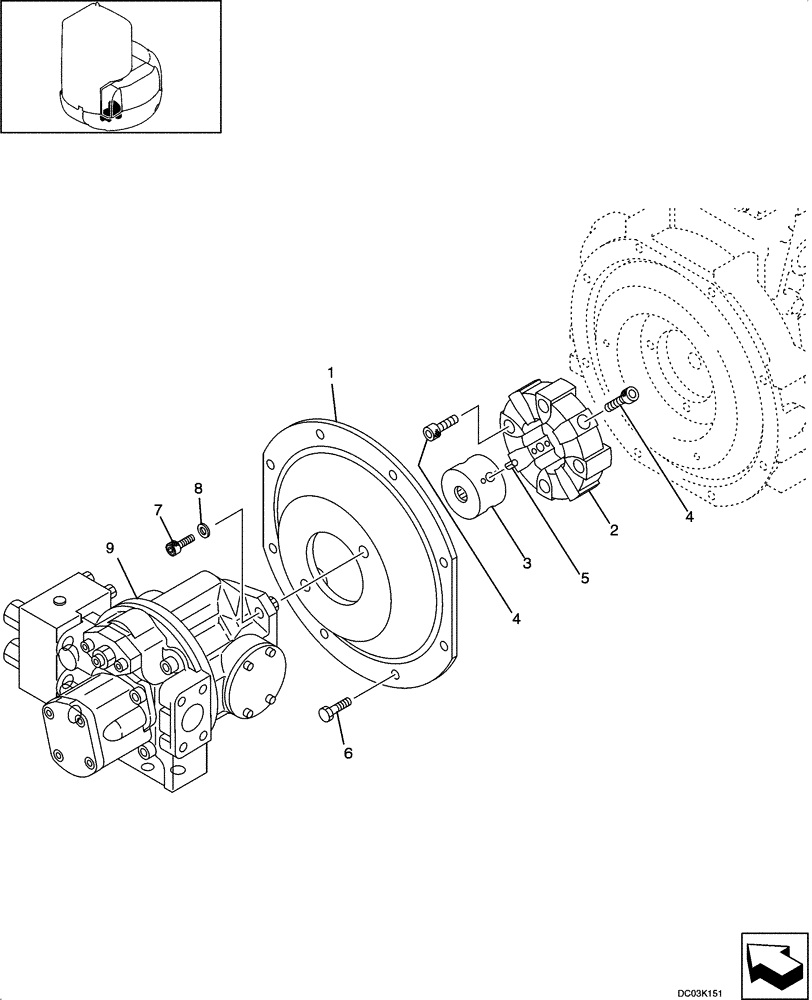

Запчасти Case CX47 (06-02[00]) - POWER TAKE OFF ASSY - CAB (06) - POWER TRAIN

PH30P00002F1

PTO

POWER TAKE OFF ASSY. Incl 1 - 9

1шт.

1

PY30P01006P2

BRACKET

1шт.

2

PH30P01002F1

COUPLING

Incl.3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

4

NSS

NOT SOLD SEPARAT

Bolt

2шт.

5

NSS

NOT SOLD SEPARAT

Pin

1шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

7

ZS28C12035

CAPSCREW,Hex Socket Head, M12 x 35mm

2шт.

8

ZW16H12000

WASHER

2шт.

9

PY10V00010F1

PUMP

(Cab) See Figure 08 -18

1шт.
