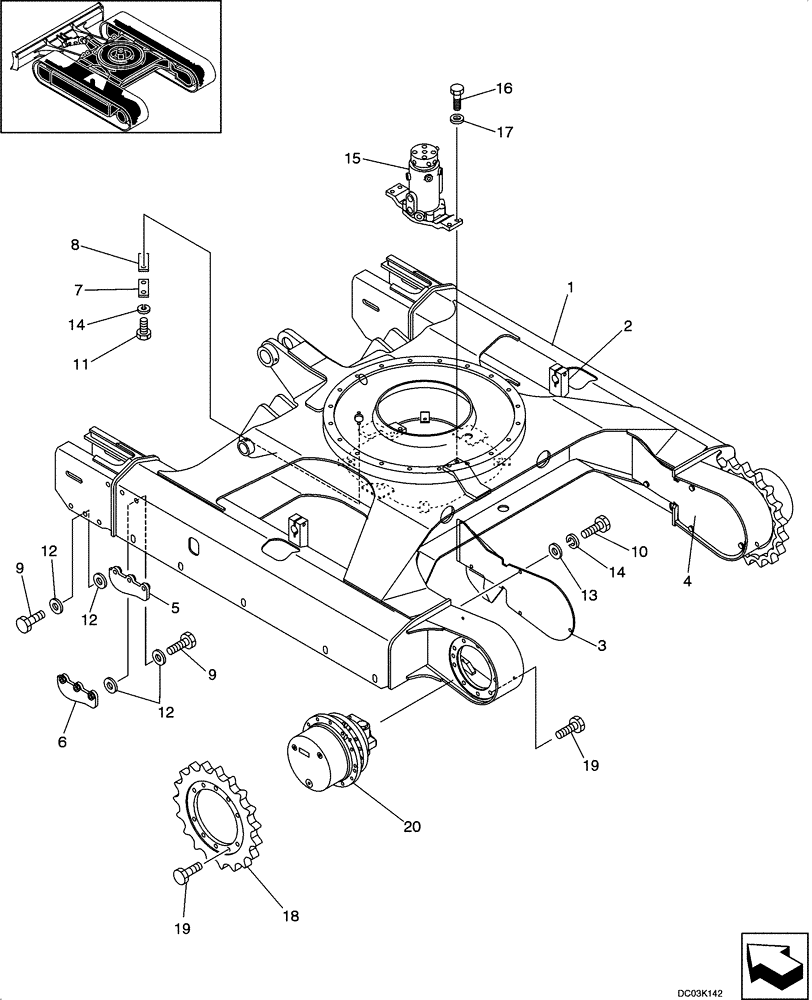

Запчасти Case CX47 (05-01[00]) - UNDERCARRIAGE (11) - TRACKS/STEERING

1

PY02F00018P1

FRAME

1шт.

2

PH07F01031P1

SUPPORT

2шт.

3

PY01F01014P1

COVER

1шт.

4

PY01F01015P1

COVER

1шт.

5

PY01F01008P1

PLATE

2шт.

6

PY01F01001P1

PLATE

2шт.

7

2422T556

PLATE

1шт.

8

2418T12274

PACKING

1шт.

9

ZS18C16045

SCREW,Hex, M16 x 45mm

12шт.

10

ZS18C10020

SCREW,Hex, M10 x 20mm

8шт.

11

ZS18C10014

SCREW,Hex, M10 x 14mm

2шт.

12

ZW16H16000

WASHER

24шт.

13

ZW16X10000

WASHER

8шт.

14

ZW26X10000

LOCK WASHER

10шт.

15

24100J12703F1

HYDRAULIC SWIVEL

See Figure 08 -32

1шт.

16

ZS18C14035

SCREW,Hex, M14 x 35mm

4шт.

17

ZW16X14000

WASHER

4шт.

18

PH51D01002P1

SPROCKET

2шт.

19

ZS18C14035

SCREW,Hex, M14 x 35mm

40шт.

20

PY15V00009F3

MOTOR

See Figure 06 -03

1шт.

PY15V00009F3R

REMAN-HYD MOTOR

CX47

1шт.

PY15V00009F3C

CORE-MOTOR HYDRAULIC

Return Number

1шт.
