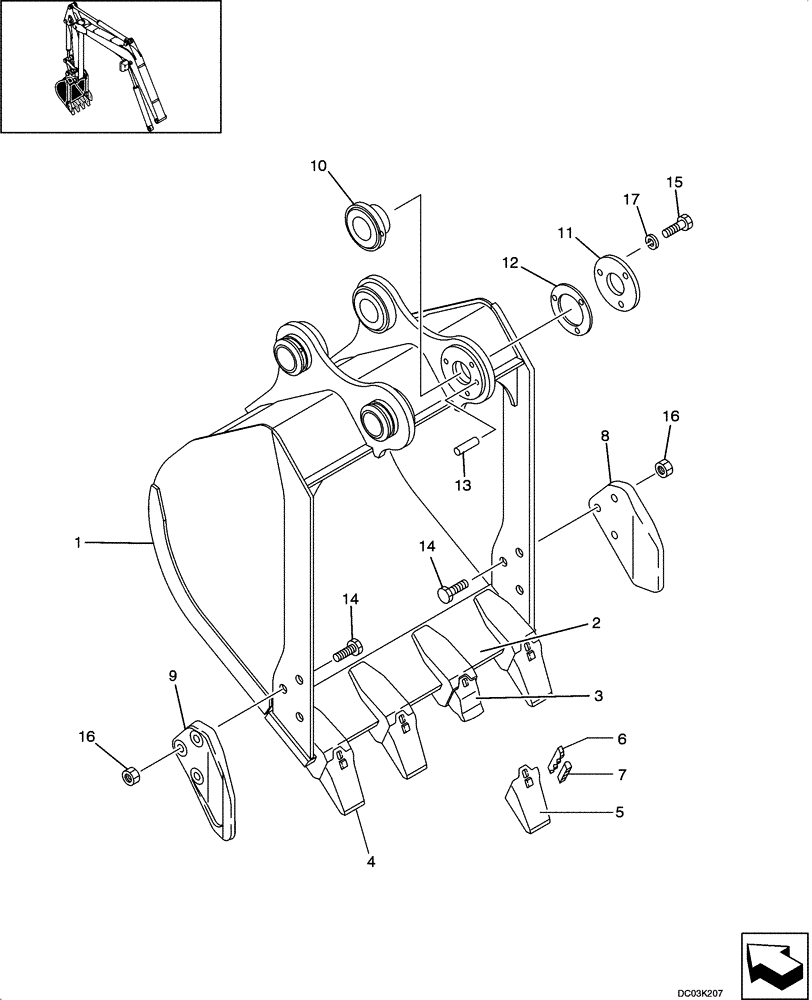

Запчасти Case CX47 (09-49[00]) - BUCKET ASSY (09) - CHASSIS/ATTACHMENTS

PY61B00057F1

BUCKET

650W Incl. 1 - 17

1шт.

1

PY61B00056P1

BUCKET

Incl. 2, 3

1шт.

2

PY61B00056P1013

EDGE

1шт.

3

2412U103

ADAPTER

4шт.

4

2412P641F1

BUCKET TOOTH

Incl. 5 - 7

4шт.

5

2412P641E1

BUCKET TOOTH

1шт.

6

2412P641E2

LOCK PIN

1шт.

7

2412P641E3

LOCK

1шт.

8

PH69B00003P1

CUTTING EDGE

1шт.

9

PH69B00004P1

CUTTING EDGE

1шт.

10

PH61B01012P1

BUSHING

1шт.

11

PH61B01013P1

PLATE

1шт.

12

PH61B01014P1

SHIM,0.5mm Thk

12шт.

13

2419T3820D3

PIN

1шт.

14

ZS13C16040

SCREW

6шт.

15

ZS18C10035

SCREW,Hex, M10 x 35mm

3шт.

16

ZN13C16013

NUT

6шт.

17

ZW26X10000

LOCK WASHER

3шт.
