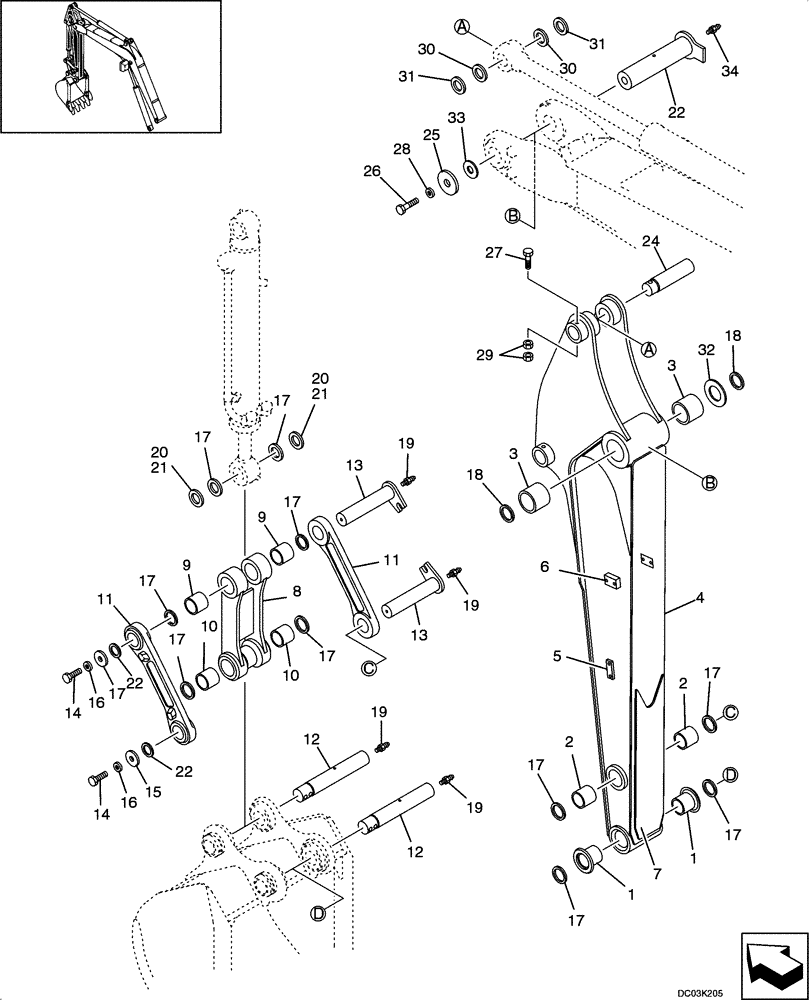

Запчасти Case CX47 (09-47[00]) - ARM ASSY (09) - CHASSIS/ATTACHMENTS

PY12B00065F3

ARM

Incl. 1 - 7

1шт.

1

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

2

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

3

PH12B01069P2

BUSHING,60mm ID x 75mm OD x 45mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Arm Incl. 5 - 7

1шт.

5

PM12B01315P1

BLOCK

2шт.

6

PX12B01185P1

BLOCK

2шт.

7

PY12B01114P1

PLATE

1шт.

PH12B01093F1

LINK

Bucket Incl. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Link

1шт.

9

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

10

PH12B01067P1

BUSHING,45mm ID x 55mm OD x 42mm L

2шт.

11

PH12B01101P1%C

LINK

2шт.

12

PH12B01114P1

PIN,45mm OD x 287.5mm L

See Bucket Install for retaining pins

2шт.

13

PY12B01158P1

PIN,45mm OD x 210.5mm L

Replaces PH12B01103P1

2шт.

14

ZS18C16030

SCREW,Hex, M16 x 30mm

2шт.

15

PW12B01242P1

WASHER

2шт.

16

ZW16H16000

WASHER

1шт.

17

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

10шт.

18

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

2шт.

19

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

4шт.

20

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

21

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

22

PW12B01243D1

SHIM,0.5mm Thk

10шт.

23

PH12B01085P2

PIN

1шт.

24

PH12B01084P1

PIN

1шт.

25

PH12B01087P1

WASHER

1шт.

26

ZS18C24055

CAPSCREW,Hex, M24 x 55mm

1шт.

27

HS18C12090G1

SCREW

1шт.

28

ZW16H24000

WASHER

1шт.

29

ZN18C12010

NUT

2шт.

30

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

31

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

32

PH12B01088P1

SHIM,0.5mm Thk

1шт.

33

PH12B01115P1

SHIM,0.5mm Thk

2шт.

34

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.
