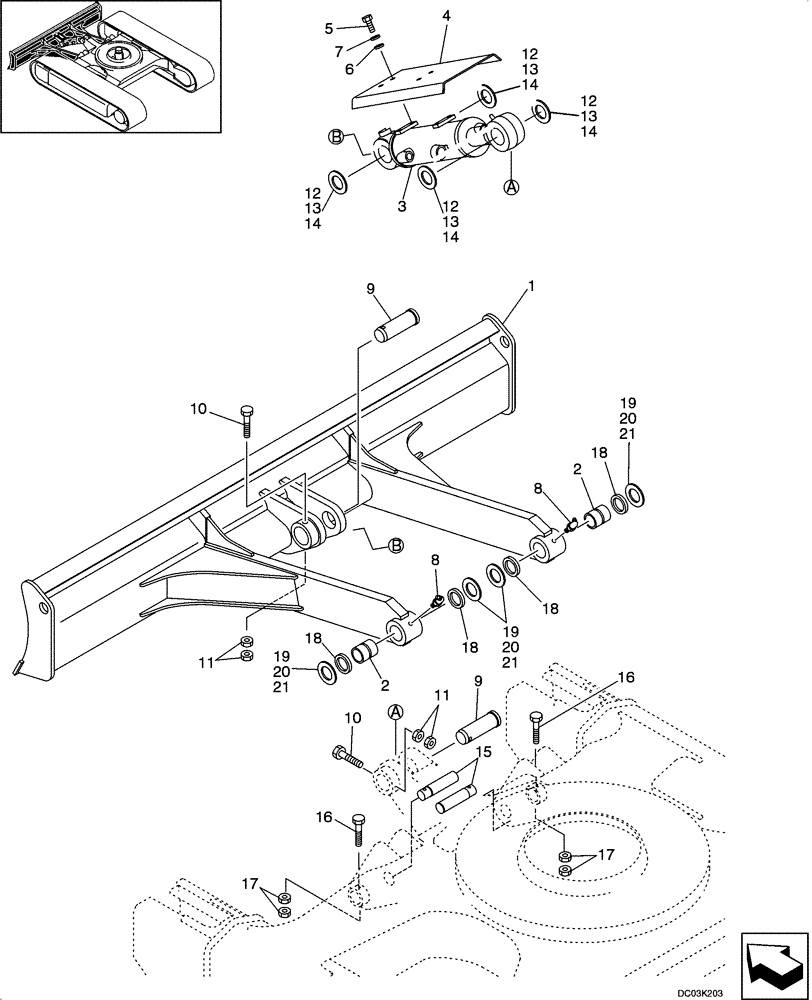

Запчасти Case CX47 (09-45[00]) - DOZER BLADE (09) - CHASSIS/ATTACHMENTS

PY51B00019F1

DOZER BLADE

Incl. 1, 2

1шт.

1

PY51B00020P1008

PLATE

Cutting Edge (1,960mm x 65mm x 9mm)

1шт.

2

2405T1689

BUSHING,40mm ID x 50mm OD x 60mm L

2шт.

3

PY01V00033F2

CYLINDER ASSY.

See Figure 08 -64

1шт.

4

PH51B01020P1

COVER

1шт.

5

ZS18C10016

SCREW,Hex, M10 x 16mm

4шт.

6

ZW16X10000

WASHER

4шт.

7

ZW26X10000

LOCK WASHER

4шт.

8

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

2шт.

9

YJ51B01009P1

PIN,55mm OD x 150mm L

2шт.

10

ZS18C12110

SCREW,Hex, M12 x 110mm

2шт.

11

ZN18C12010

NUT

4шт.

12

B16T0442D26

SHIM,90mm OD x 57mm ID x 1.2mm Thk

2шт.

13

B16T0442D21

SHIM,57mm ID x 90mm OD x 1.6mm Thk

2шт.

14

B16T0442D22

SHIM,90mm OD x 57mm ID x 2.3mm Thk

2шт.

15

PH51B01001P1

PIN,40mm OD x 137mm L

2шт.

16

ZS18C10085

SCREW,Hex, M10 x 85mm

2шт.

17

ZN18C10008

NUT

4шт.

18

2445R138D5

SEAL,40mm ID x 50mm OD x 4mm Thk

4шт.

19

B16T0442D67

SHIM,65mm OD x 42mm ID x 1.2mm Thk

2шт.

20

B16T0442D68

SHIM,65mm OD x 42mm ID x 1.6mm Thk

2шт.

21

B16T0442D69

SHIM,65mm OD x 42mm ID x 2.3mm Thk

2шт.
