(09-39[00]) - PANEL ASSY - LEFT HAND - CAB (TRAVEL ALARM)

Запчасти Case CX47 (09-39[00]) - PANEL ASSY - LEFT HAND - CAB (TRAVEL ALARM) (09) - CHASSIS/ATTACHMENTS

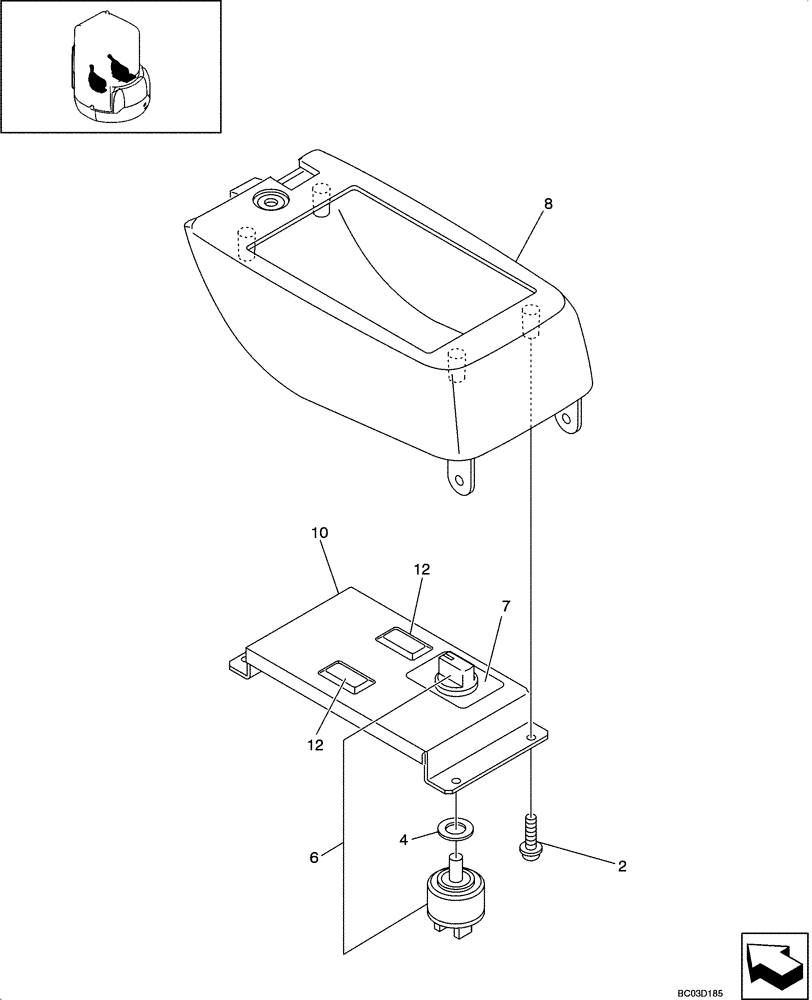

Схема запчастей Case CX47 - (09-39[00]) - PANEL ASSY - LEFT HAND - CAB (TRAVEL ALARM) (09) - CHASSIS/ATTACHMENTS
12
8
12
2
10
4
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PM17M00017F5

PANEL ASSY.

LEFT HAND Incl. 2 - 12

1шт.

2

ZM41C04012

BOLT

4шт.

4

PM17M01018P1

WASHER

1шт.

6

PY50S00004P1

SWITCH

(Used for Windshield Wiper Washer)

1шт.

7

PH17M01013P1

LABEL

1шт.

8

PE17M01004D3

COVER

1шт.

10

PM17M01036P1

BRACKET

1шт.

12

2414T4530

CAP

2шт.
