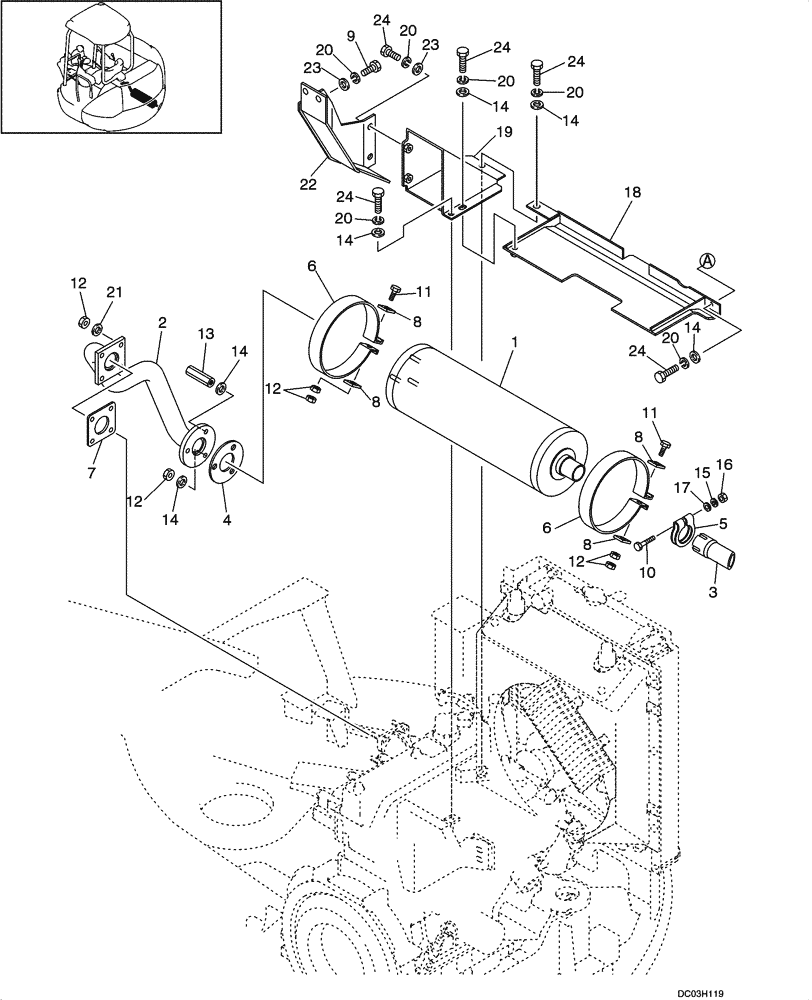

Запчасти Case CX47 (02-08[00]) - MUFFLER ASSY (02) - ENGINE

YANMAR DIESEL ENGINE

1шт.

4TNE88 - EYBC

1шт.

PY12P00005F1

MUFFLER

Incl. 1 - 24

1шт.

1

PH12P00004P1

MUFFLER

1шт.

2

PH12P01043P1

EXHAUST SYSTEM PIPE

1шт.

3

PH12P01039P2

EXHAUST SYSTEM PIPE

1шт.

4

PH12P01005P1

GASKET

1шт.

5

PH12P01044P1

CLAMP

1шт.

6

PH12P01028P1

CLAMP

2шт.

7

PY12P01019P1

GASKET

1шт.

8

PM12P01034P1

SPACER

4шт.

9

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

10

ZS18C10060

SCREW,Hex, M10 x 60mm

1шт.

11

ZS18C08040

SCREW,Hex, M8 x 40mm

2шт.

12

ZN18C08007

NUT

9шт.

13

PM12P01033P1

NUT

2шт.

14

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

7шт.

15

ZW26X10000

LOCK WASHER

1шт.

16

ZN18C10008

NUT

1шт.

17

ZW16X10000

WASHER

1шт.

18

PH12P01033P2

COVER

1шт.

19

PH12P01042P1

COVER

1шт.

20

ZW26X08000

LOCK WASHER

8шт.

21

ZW16H08000

WASHER

4шт.

22

PH12P01041P1

COVER

1шт.

23

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

4шт.

24

ZS18C08016

SCREW,Hex, M8 x 16mm

6шт.
