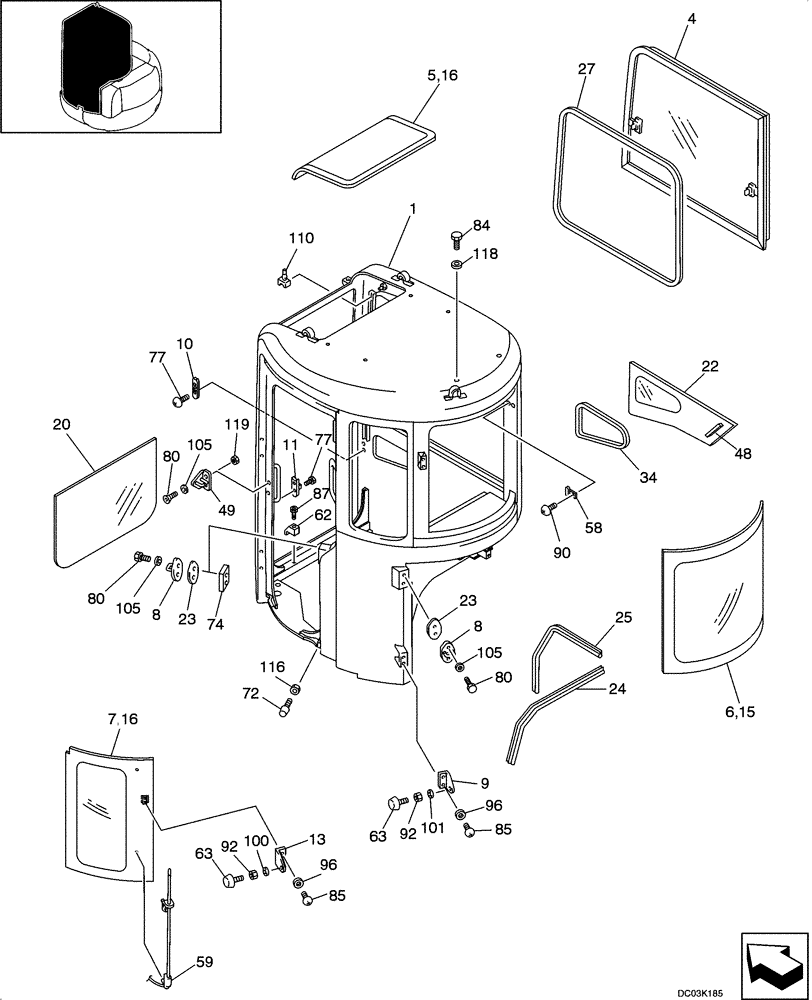

Запчасти Case CX47 (09-16[00]) - CAB - GLASS (09) - CHASSIS/ATTACHMENTS

PM02C00021F1

CAB

Incls. Refs. 1-78

1шт.

1

PM02C00023P1

CAB

1шт.

4

PM02C01358F1

WINDOW ASSY

See Figure 09-16-01

1шт.

5

PM02C01397P1

GLASS

1шт.

6

PM02C01077P1

GLASS

1шт.

7

PM02C01261P1

CAB GLASS

1шт.

8

YT51C01021P1

HOOK

2шт.

9

PM02C01323P1

BRACKET

1шт.

10

PM02C01393P1

STOP

1шт.

11

PM02C01394P1

STOP

1шт.

13

PM02C01324P1

BRACKET

1шт.

15

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

16

PM02C01172D2

SEAL,7mm W x 4.8mm H x 2500mm L

2шт.

20

PM02C01091P1

GLASS

1шт.

22

PM02C01371P1

CAB GLASS

1шт.

23

YT51C01077D1

SPACER

2шт.

24

PM02C01035D3

WEATHERSTRIP

1шт.

25

PM02C01035D1

WEATHERSTRIP

1шт.

27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

34

PM02C01172D4

SEAL,7mm W x 4.8mm H x 870mm L

1шт.

48

PM02C01172D5

SEAL,7mm W x 4.8mm H x 130mm L

1шт.

49

PM02C01440P1

STRIKER PLATE

1шт.

58

YR02C01578P1

HOOK

1шт.

59

PM54S00001P1

ANTENNA

1шт.

62

PM02C01356P1

STOP

2шт.

63

YT02C01066P1

STOP

4шт.

72

PY02C01085P1

STOP

1шт.

74

PM02C01385P1

BLOCK

1шт.

77

ZM46C05025

BOLT

5шт.

80

ZS68C10025

CAPSCREW

6шт.

84

ZS18C08016

SCREW,Hex, M8 x 16mm

9шт.

85

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

4шт.

87

ZS31C05025

SCREW,Phillips Drive, Pan HD, M5 x 25mm

2шт.

90

ZS31C04012

BOLT,Phillips Drive, Pan HD, M4 x 12mm

2шт.

92

ZN18F10008

NUT

4шт.

96

ZW26X08000

LOCK WASHER

14шт.

101

ZW16X10000

WASHER

6шт.

105

PM02C01353P1

WASHER

6шт.

110

PM02C01396P1

STOP

2шт.

116

ZN18C10008

NUT

1шт.

118

PM02C01483P1

SHIM

6шт.

119

PM02C01212P1

BLOCK

1шт.
