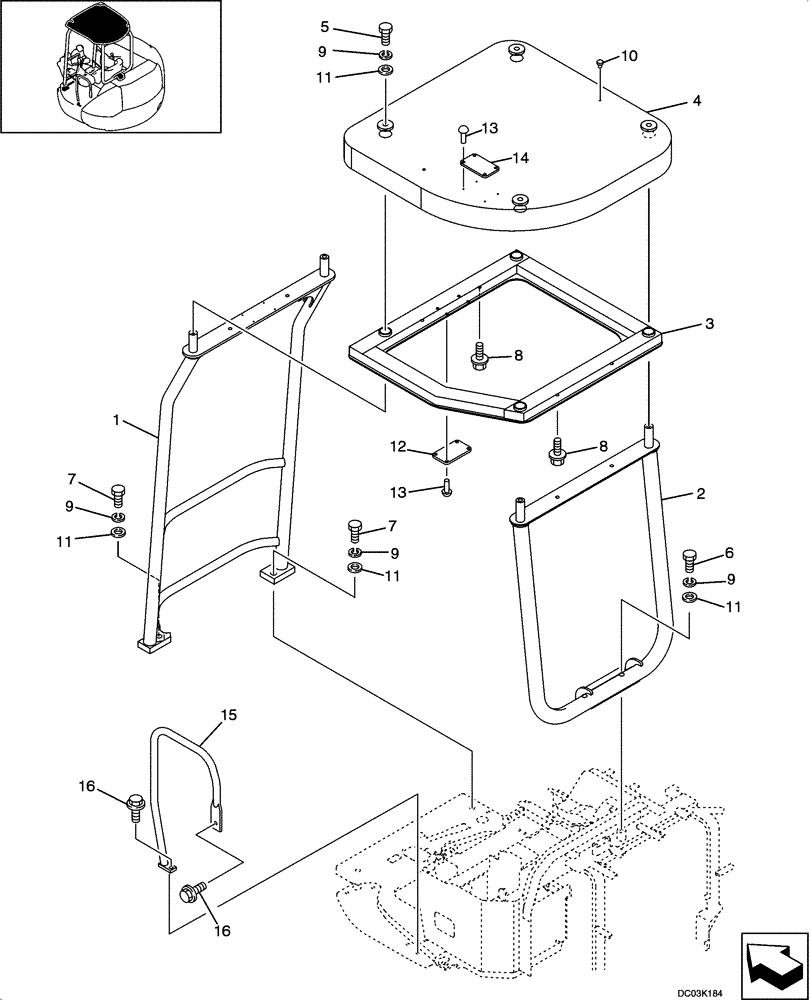

Запчасти Case CX47 (09-15[00]) - CANOPY (09) - CHASSIS/ATTACHMENTS

Canopy Assembly

1шт.

1

PY06C01069P1

SUPPORT

Front

1шт.

2

PY06C01070P1

SUPPORT

Rear

1шт.

3

PM06C01089P1

ROOF FRAME

1шт.

4

PM06C01088P1

CANOPY

Plate

1шт.

5

ZS18C16040

SCREW,Hex, M16 x 40mm

M16x2.0x40mm

4шт.

6

ZS18C16045

SCREW,Hex, M16 x 45mm

M16x2.0x45mm

2шт.

7

ZS18C16060

SCREW,Hex, M16 x 60mm

M16x2.0x60mm

2шт.

8

PM06C01045D3

BOLT

M10x45mm Long

4шт.

9

ZW26X16000

LOCK WASHER

ID 16 x OD 28 x Th 4.0mm

8шт.

10

PV02B01073D2

CAP

07.2mm Plastic

2шт.

11

YJ03M01031P1

WASHER

M16

8шт.

12

PE20T01026P1

PLATE

1шт.

13

PE06C01033P1

RIVET

8шт.

14

PE20T01025P1

PLATE

1шт.

15

PW41C00003P1

HANDRAIL

1шт.

16

PM06C01045D2

BOLT

2шт.
