Запчасти Case CX47 (09-09[00]) - COVER - PANELS, CANOPY (09) - CHASSIS/ATTACHMENTS

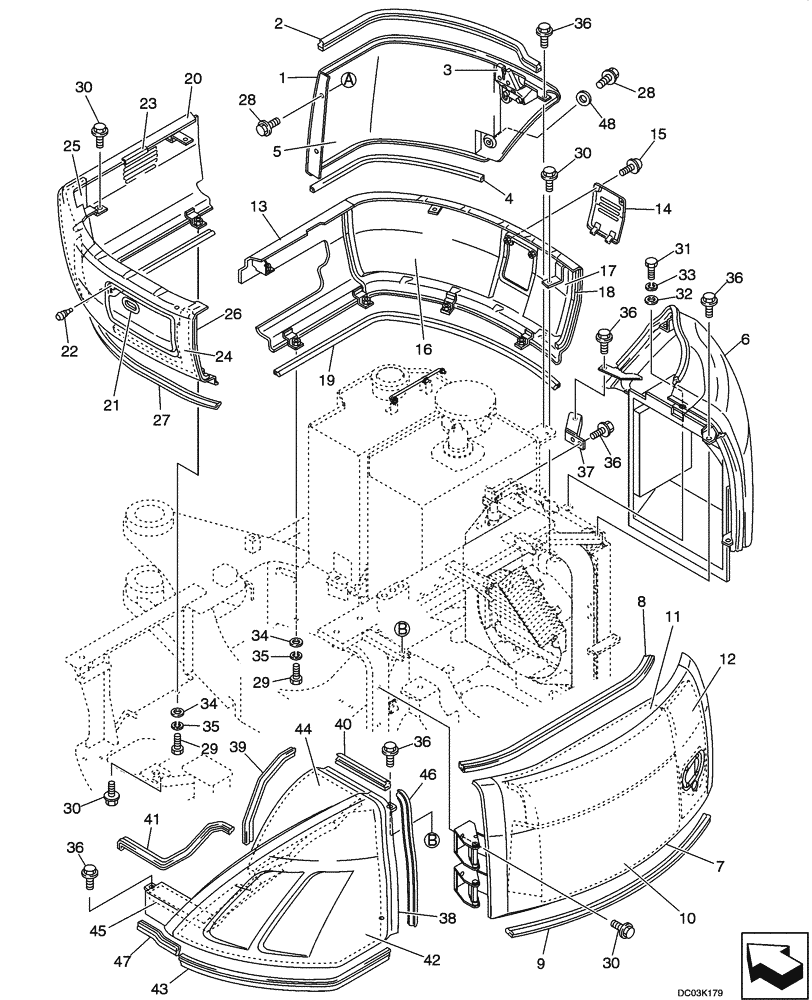

Схема запчастей Case CX47 - (09-09[00]) - COVER - PANELS, CANOPY (09) - CHASSIS/ATTACHMENTS
34
12
17
16
36
38
19
36
10
36
23
41
37
13
36
7
39
29
2
28
28
36
32
27
8
47
15
30
36
30
48
26
14
25
5
34
43
31
33
35
45
30
46
11
44
22
24
6
18
42
3
29
4
21
9
30
1
40
35
20

Артикул

Название

Примечание

Количество

PW21C01279F2

PANEL

Incl. 1 - 5

1шт.

1

PE21C01253P1

PANEL

1шт.

2

PH21C01021D5

WEATHERSTRIP

1шт.

3

PM21C01283F1

LOCK ASSY

See Figure 09 -11

1шт.

4

PE21C01070D3

SEAL PROTECTION

1шт.

5

PH21C01268P1

FOAM INSULATION

1шт.

6

PH21C01285F1

PANEL

See Figure 09 -11

1шт.

PH22C00004F1

HOOD

Incl. 7 - 12

1шт.

7

PH22C01045P2

HOOD

1шт.

8

PM21C01136DJ

WEATHERSTRIP

1шт.

9

PM22C01013DF

WEATHERSTRIP

1шт.

10

PH22C01046P4

FOAM INSULATION

1шт.

11

PH22C01047P2

FOAM INSULATION

1шт.

12

PH22C01048P2

FOAM INSULATION

1шт.

PH21C01288F1

COVER ASSY

Incl.13 - 19

1шт.

13

PH21C01287P1

COVER

1шт.

14

PM21C01211P1

COVER

1шт.

15

PA41C01006D2

BOLT

2шт.

16

PW21C01260P1

FOAM INSULATION

1шт.

17

PM21C01230P1

FOAM INSULATION

1шт.

18

PM21C01233P1

RUBBER

1шт.

19

PM22C01013DM

WEATHERSTRIP

1шт.

PH21C01177F1

COVER ASSY

Incl. 20 - 27

1шт.

20

PH21C01173P2

COVER

1шт.

21

PM21C01255P2

GROMMET

1шт.

22

PM21C01253P1

RUBBER

2шт.

23

PM22C01020D7

STRIP

1шт.

24

PM21C01228P1

FOAM INSULATION

1шт.

25

PH21C01255P1

FOAM INSULATION

1шт.

26

PM21C01233P1

RUBBER

1шт.

27

PM22C01013DL

WEATHERSTRIP

1шт.

28

PA21C01133P1

BOLT

7шт.

29

ZS18C10035

SCREW,Hex, M10 x 35mm

7шт.

30

ZM32C10025

BOLT

8шт.

31

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

32

YR21C01223P1

WASHER

1шт.

33

ZW26X08000

LOCK WASHER

1шт.

34

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

7шт.

35

ZW26X10000

LOCK WASHER

7шт.

36

YR21C01159P1

BOLT

15шт.

37

PH21C01179P1

PLATE

1шт.

PH21C01193F1

COVER ASSY

Incl. 38 - 47

1шт.

38

PH21C01192P2

COVER

1шт.

39

PM22C01013DC

WEATHERSTRIP

1шт.

40

YN21C01136D3

WEATHERSTRIP

1шт.

41

PM21C01152DS

WEATHERSTRIP

1шт.

42

PH22C01055P1

FOAM INSULATION

1шт.

43

PM21C01136D6

WEATHERSTRIP

1шт.

44

PH21C01271P1

FOAM INSULATION

1шт.

45

PH21C01272P1

FOAM INSULATION

1шт.

46

PY21C01007DH

WEATHERSTRIP

1шт.

47

PM22C01013DN

WEATHERSTRIP

1шт.

48

PH21C01148P1

WASHER

1шт.

Выбрано товаров: 53
