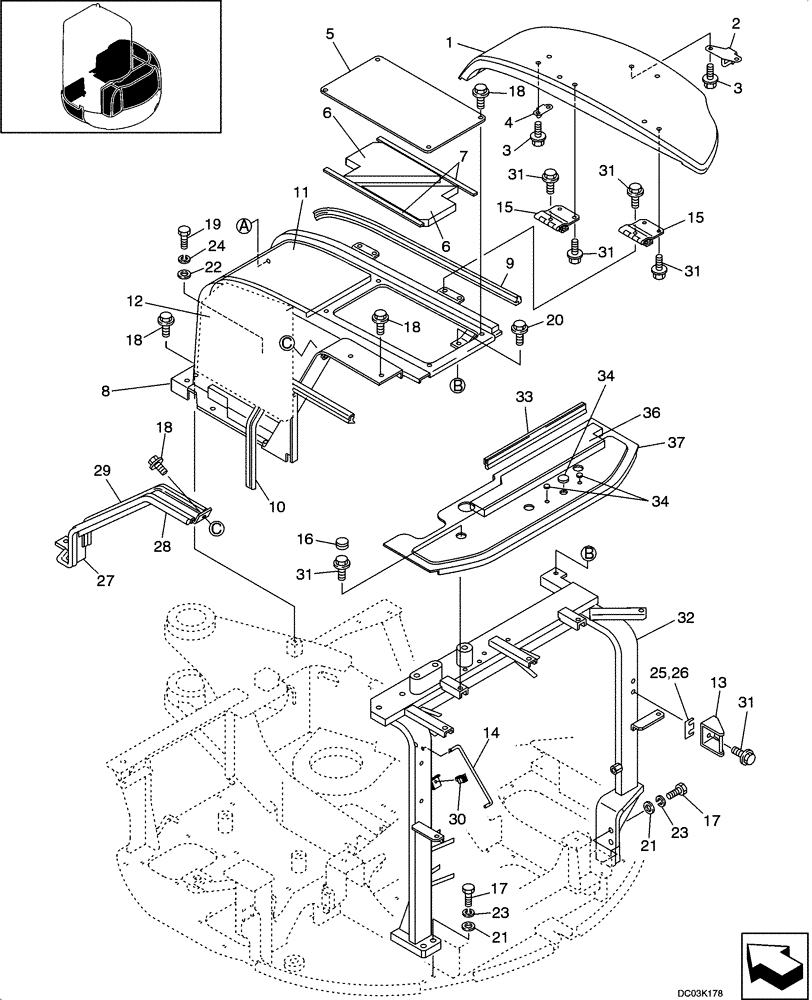

Запчасти Case CX47 (09-08[00]) - COVER - SUPPORTS, CAB (09) - CHASSIS/ATTACHMENTS

PW21C01251F1

COVER ASSY

Incl. 1 - 4

1шт.

1

PW21C01255P1

COVER

1шт.

2

PM21C01199P1

STRIKER PLATE

1шт.

3

ZM22C08016

BOLT

4шт.

4

PM21C01188P1

SUPPORT

1шт.

PH21C01291F1

COVER ASSY

Incl. 5 - 7

1шт.

5

PH21C01292P1

COVER

1шт.

6

PH21C01260P2

FOAM INSULATION

2шт.

7

2416R270D5

RUBBER

2шт.

PH21C01294F1

BRACKET

Incl. 8 - 12

1шт.

8

PH21C01295P1

BRACKET

1шт.

9

PM21C01091DH

WEATHERSTRIP

1шт.

10

PM21C01091DE

WEATHERSTRIP

1шт.

11

PH21C01258P1

FOAM INSULATION

1шт.

12

PH21C01257P2

FOAM INSULATION

1шт.

13

PH21C01188P2

STRIKER PLATE

1шт.

14

PH21C01265P1

STAY

1шт.

15

PM21C01153P1

HINGE

2шт.

16

PM21C01146P1

GROMMET

3шт.

17

ZS18C12045

SCREW,Hex, M12 x 45mm

4шт.

18

PA21C01133P1

BOLT

8шт.

19

ZS18C10035

SCREW,Hex, M10 x 35mm

8шт.

20

ZM32C10025

BOLT

8шт.

21

ZW16H12000

WASHER

4шт.

22

2418T12346

WASHER

ID 11 x OD 30 x Th 3.2mm

8шт.

23

ZW26X12000

LOCK WASHER

4шт.

24

ZW26X10000

LOCK WASHER

8шт.

25

YJ21C01158D1

SHIM

(3, 0)

1шт.

26

YJ21C01158D2

SHIM

(1, 6)

1шт.

PH21C01226F1

COVER

Incl. 27 - 29

1шт.

27

PH21C01251P1

COVER

1шт.

28

PM21C01152DC

WEATHERSTRIP

1шт.

29

2427P1836D37

WEATHERSTRIP

1шт.

30

YR21C01123P1

COLLAR

ø

2шт.

31

YR21C01159P1

BOLT

15шт.

32

PH21C01303P1

SUPPORT

SUPPORT

1шт.

PY22C00004F2

COVER ASSY

Incl. 33 - 37

1шт.

33

PM22C01013DJ

WEATHERSTRIP

1шт.

34

2420R603D2

RUBBER

2шт.

35

2420R603D4

RUBBER

1шт.

36

PY22C01054P1

FOAM INSULATION

1шт.

37

PY22C01061P1

COVER

1шт.
